SFP28 MWDM 20Km I-temp (FTCS-Mxx25G-20DI)

SFP28 MWDM 20Km I-temp (FTCS-Mxx25G-20DI)

0.0/5 rating (0 votes)

Description

Description
The F-tone Networks SFP28 MWDM 20km Transceiver is a “Limiting module”, designed for CPRI option10,25GBASE, link length up to 20km on G.652 SMF, link budget can reach 15dB.They are compliant with SFF-8431 Rev 4.1, SFF-8432 and SFF-8472 Rev 12.3.The transmitter section incorporates a DML laser£¬and the receiver section consists of an APD photodiode integrated with TIA.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as case temperature, laser bias current, transmitted optical power, and received optical power and module supply voltage.

Features
¡ñ Hot-pluggable SFP28 form factor
¡ñ Supports CPRI wireless data rate
¡ñ Cooled DML transmitter and APD receiver
¡ñ 7nm channel spacing MWDM systems
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ Maximum power dissipation£º2W
¡ñ Maximum link length£º20Km on SMF
¡ñ Duplex LC connector
¡ñ Operating case temperature range: -40 to +85°C
¡ñ Single 3.3V power supply
¡ñ RoHS compliant (lead free)

Applications
¡ñ CPRI Option 10¡¢eCPRI
¡ñ 25G Ethernet

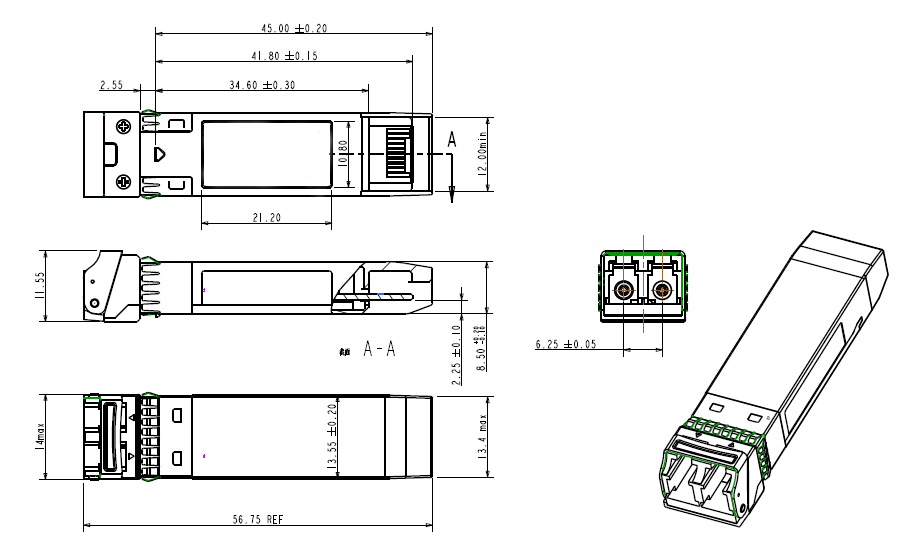

Mechanical Dimensions
F-tone Networks FTCS-Mxx25G-20DI SFP28 Transceiver are compatible with the SFF-8432 specification for improved pluggable form factor, and shown here for reference purposes only.FTCS Mxx25G 20DI

Ordering information

Part Number

Product Description

FTCS-M2625G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1267.5nm, blue

FTCS-M2725G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1274.5nm, red

FTCS-M2825G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1287.5nm, blue

FTCS-M2925G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1294.5nm, red

FTCS-M3025G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1307.5nm, blue

FTCS-M3125G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1314.5nm, red

FTCS-M3225G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1327.5nm, blue

FTCS-M3325G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1334.5nm, red

FTCS-M3425G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1347.5nm, blue

FTCS-M3525G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1354.5nm, red

FTCS-M3625G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1367.5nm, blue

FTCS-M3725G-20DI

25Gbps 20km MWDM SFP28,-40~+85ºC,1374.5nm, red













±¾²úƷΪ25G~400G¸ßËÙ¹âÄ£¿éϵÁУ¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ ¡£

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
