SFP 3G 1310nm Dual Optical Transmitter SDI

FEATURES
¡ñ Distance up to 10 km for 3G-SDI
¡ñ Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
¡ñ Dual Transmitter with Duplex LC
¡ñ Speed from 50 Mbps to 3 Gbps
¡ñ Single 3.3 Volt DC supply
¡ñ Based on Industry Standard SFP
¡ñ Hot Pluggable
¡ñ Operating case temperature:
       FTCS-2T133G-10D : 0 ¡æto 70¡æ
       FTCS-2T133G-10DI : -40 ¡æto 85¡æ

APPLICATIONS
¡ñ High-density Video Routers

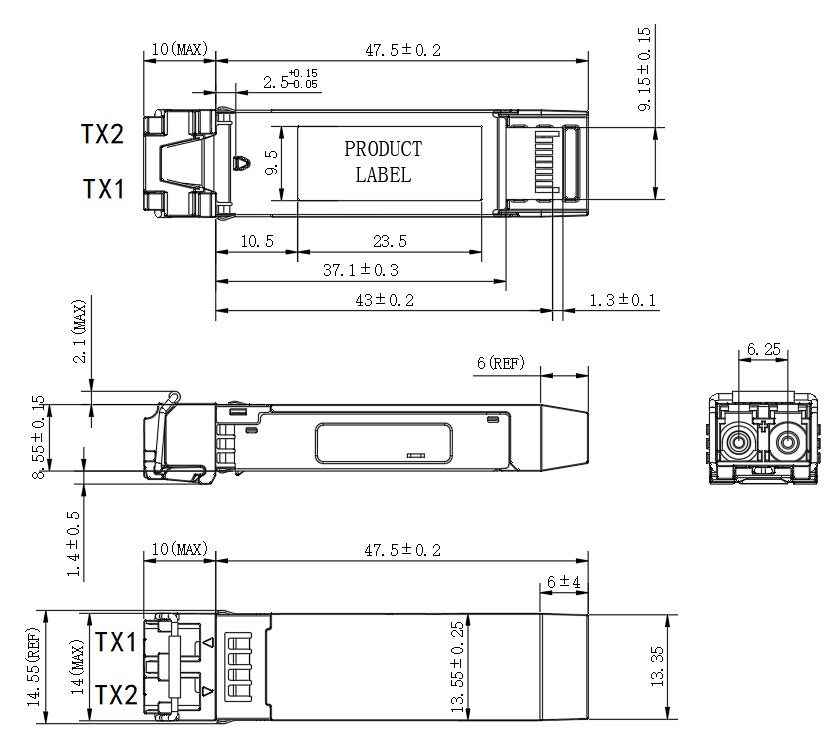

Mechanical Dimensions

NOTE: Unspecified tolerance: ± 0.25mm

Ordering Information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
±¾²úƷΪVideo SFPϵÁйâÄ
£¿é£¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice
Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
