100G-DR1 QSFP28 光� ？�
Description
100G-DR1 QSFP28 光� ？�
产品描述
F-tone Networks的100G DR1 500米QSFP28光� ？�，100G QSFP28 DR1（FTQ2-HG-DR1xx）设计用于单模光纤（SMF）上500米以内的100千兆以太网链路。它切合QSFP28 MSA、802.3cu 100GBASE DR1和CAUI-4（无FEC）1。数字诊断功效可通过I2C接口获得，如QSFP28 MSA所划定。它在每个偏向集成了4个数据通道，带宽为4×25.78125Gb/s。电气接口使用38触点边沿型连接器。光学接口使用双工LC连接器。该� ？榻岷狭薋-tone Networks经过验证的电路和硅光子技术，提供可靠的长寿命、高性能和一致的效劳。
产品特征
● 切合802.3cu
● 切合100GE DR1规范
● 1信道全双工收发器� ？�
● 全双工收发器� ？�
● 4x25.78125Gbit/s NRZ电气接口（CAUI-4）
● 基于硅光子学的106.25Gb/s PAM4
● 4W最大功耗
● 可热插拔QSFP28外形尺寸
● 带KP-FEC的G.652 SMF上最大链路长度为500米
● 双工LC插座
● 内置数字诊断功效
● 单路3.3V电源
● 切合RoHS（无铅）
● 外壳事情温度
商用：0~+70℃
工业：-40～+85℃
应用
● IEEE 802.3cu 100GE DR1

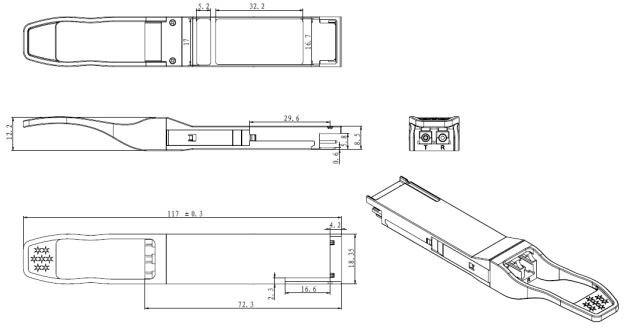

机械尺寸
订购信息
|
产品型号 |
产品描述 |
|
FTQ2-HG-DR1 |
QSFP28 DR1, 106.25Gb/s, 500m, SMF, Dual LC,0 ~ +70℃ |
|
FTQ2-HG-DR1I |
QSFP28 DR1, 106.25Gb/s, 500m, SMF, Dual LC,-40 ~ +85℃ |
大宝娱乐 | F-tone Networks
企业邮箱：该邮件地点已受到反垃圾邮件插件�；�。要显示它需要在浏览器中启用 JavaScript。
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702
本产品为25G~400G高速光� ？橄盗�，如有需要，请联系大宝娱乐。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
