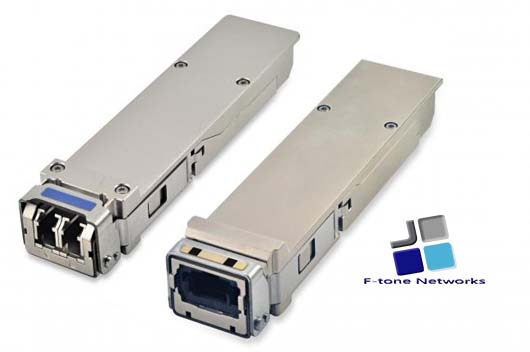

10km OTU4/100G Ethernet CFP2 Optical Transceiver Module (CFP2-100G-LR4),F-tone¡¯s CFP2-100G-LR4 100G CFP2 transceiver modules are designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces over single mode fiber. They are compliant with the CFP MSA, IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39).

CFP2 LR4,100G CFP2 LR4:The CFP2-1310-LR4 is a fully integrated 100Gbit/s optical transceiver module that consists of a 1310 nm wavelength cooled EA-DFB LD, Driver IC, PIN photo-diode, pre-amplifier, dual clock and data recovery (CDR) ICs with 25 Gbit/s electrical interface which complies with CFP2 Multiple Source Agreement (MSA) specifications.

CFP4 LR4,CFP4-100G-LR4-1310NM is a fully integrated 100Gbit/s optical transceiver module that consists of a 1310 nm wavelength cooled EA-DFB LD, Driver IC, PIN photo-diode, pre-amplifier, dual clock and data recovery (CDR) ICs with 25 Gbit/s electrical interface which complies with CFP2 Multiple Source Agreement (MSA) specifications. This compact size transceiver module is 50% smaller than F-tone Networks¡¯s first generation CFP solution.

100GBASE-LR4 10km CFP4 Optical Transceiver£ºF-tone Networks's CFP4-100G-LR4 100G CFP4 optical transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CFP MSA and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and F-tone Networks Application Note FTAN-2015xx. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC, and F-tone Networks Application Note FTAN-201538.

OTN Multirate 10km CFP4 Optical Transceiver£ºF-tone Netsworks¡¯s Fiber 100G CFP4 transceiver modules are designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces over single mode fiber. They are compliant with the CFP MSA, IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and F-tone Netsworks Application Note FTAN2015xx. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC, and F-tone Netsworks Application Note FTAN201538.

100GBASE-SR4 100m CFP4 Optical Transceiver£ºF-tone Networks's Fiber 100G CFP4 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the CFP4 MSA and IEEE 802.3bm 100GBASE-SR4. Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and F-tone Networks Application Note FTAN-2015xx. The transceiver is RoHS-6 compliant and lead-free per Directive 2011/65/EU, and F-tone Networks Application Note FTAN-201538.
