MVOA在线可调式光纤衰减器单多模任意接头定制

MVOA在线可调式光纤衰减器单多模任意接头定制

0.0/5 rating (0 votes)

Description

简介：

机械可调式光衰减器

机械可调式光衰减器是一种光衰减量连续可调的光无源器件，可以用来设定衰减量从1.5dB~35dB。产品有插入损耗低，稳定性好，可靠性高，体积小等优点，能做成种种标准适配器形式。该产品外形设计紧凑，能便当的装置在电路板上。

产品特点：

*衰减规模宽，单模1.5-35dB，多模1.5-25dB
*区分率高，精度为：0.15dB
*回波损耗高，最小回波损耗为55dB
*插入损耗低，0.02dB
*最大偏震稳定性为0.2dB
*最大温度稳定性为0.03dB

产品用途：

*多通路光功率均衡
*光探测端功率掩护
*线路WDM系统功率控制

性能指标：

Parameters

Operating wavelength (nm)

1260~1620

850/1310

Attenuation range (dB)

0.6~60

0.8~40

Original loss (dB)

0.6

0.8

Adjustment Precision (dB)

0.02

PDL (dB)

0.15

Fiber Type

SMF-28e

50/125 Or 62.5/125

Multi-Mode

Maximum Optical Power (mw)

500

Operating Temperature ()℃

-40～85

Storage Temperature ()℃

-40～85

Dimension (mm)

2

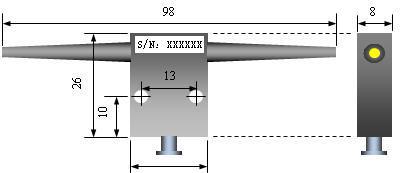

产品尺寸图：

23









Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
