Description
功效描述

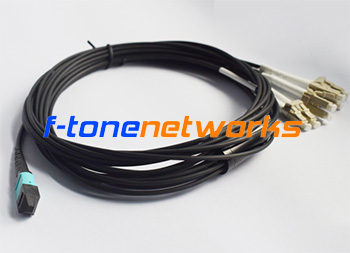

大宝娱乐MPO-LC/SC预端接扇形光纤是指一端接纳MPO单头12芯或24芯连接器，而另一端是接纳LC/SC连接器。该产品主要应用在预端� ？楹心�，连接预端主干光缆与设备间的跳线，使之� ？榛�，抵达即插即用，相关于古板熔接，极大的提高了事情的便当性和效率。
特点：
Ø 改善和简化光纤路径
Ø 减少光纤治理空间
Ø OEM或者特殊应用程序的定制
Ø 低插入损耗和反射比
Ø 高密度
Ø 嵌入式盒面板便当装置，移动和扩张
产品参数
|
参数 最低 标准 最大 单位 |
|||||
|
事情波长 |
单模 |
1310/1550 |
nm |
||
|
多模 |
850 |
||||
|
插损 (MPO/MTP 端) |
单模 |
0.75 |
dB |
||
|
单模低损 |
0.35 |
||||
|
多模 |
0.60 |
||||
|
多模低损 |
0.35 |
||||
|
插损 (Fan-out 端) |
单模PC |
0.20 |
|||
|
单模APC |
0.30 |
||||
|
多模 |
0.30 |
||||
|
回损 (MPO/MTP 端) |
单模 |
60 |
|||
|
回损 (Fan-out 端) |
单模PC |
50 |
|||
|
单模 APC |
60 |
||||
|
事情温度 |
-20 |
70 |
℃ |
||
产品应用
Ø 光学系统网络连接
Ø 电信网
Ø 宽波段/CATV网络
Ø 数据通讯网络，包括了高宽带设备
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
