Description

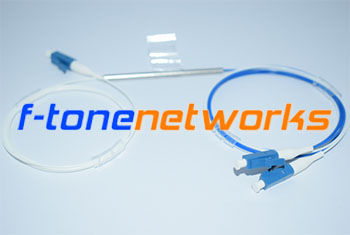

拉锥分路器-W1
产品介绍
INTRODUCTION:
|
Features
|
|
|
·Fiber optical communication system ·LAN ·CATV
·Fiber sensor
·Measure instruments
|
|
Applications
|
·Optical Communication System
·Optical Sensor
·Instrument Testing |
|
Specifications
|
Parameter
|
WDM-1310/1550
|
WDM-980/1550
|
WDM-1480/1550
|
|
Operating Wavelength(nm)
|
1310&1550
|
980&1550
|
1480&1550
|
|
Bandwidth(nm)
|
±15
|
±15
|
±5
|
|
Grade
|
P
|
A
|
P
|
A
|
P
|
A
|
|
Max Insertion loss(dB)
|
≤0.25
|
≤0.3
|
≤0.25
|
≤0.30
|
0.30
|
0.35
|
|
Peak Isolation(dB)
|
≥24
|
≥22
|
≥23
|
≥22
|
≥22
|
≥20
|
|
Min Isolation(dB)
|
≥17
|
≥16
|
≥20
|
≥18
|
≥15
|
≥15
|
|
PDL (dB)
|
≤0.05
|
≤0.10
|
≤0.05
|
≤0.10
|
≤0.1
|
≤0.15
≤0.1
|
|
Temperature stability(dB/℃)
|
≤0.002
|
|
Return loss(dB)
|
≥55
|
|
Directivity(dB)
|
≥55
|
|
Operation temperature(℃)
|
-10 to+70
|
|
Store temperature(℃)
|
-40 to +85
|
|
Fiber type
|
G652 or G657
|
Corning HI 1060 Flex or
OFS 980-16
|
G652
|
|
|
|
|
|
|
|
|
|
Note:I/L not include connector loss. ( 0.2dB/connector)
Package Information
|
Configuration
|
1X2(2X2)
|
|
Dimensions(ΦXL)(mm)
|
1310/1550 WDM
980/1550 WDM
|
250μm bare fiber
|
Φ3.0X45
|
|
900μm loose tube
|
Φ3.0X54
|
|
900μm/2mm/3mm loose tube
|
90X20X10
|
|
1480/1550 WDM
|
250μm bare fiber
|
Φ3.0X60
|
|
900μm loose tube
|
Φ3.0X70
|
Ordering Information：WDM－A－B－C－D－E－F－G－H
|
A
|
b
|
C
|
D
|
E
|
F
|
G
|
H
|
|
Mode
|
Grade
|
Wavelength
|
Package spec
|
Fiber Type
|
Fiber Diameter
|
Fiber Length
|
Connector
|
|
S:SM
|
P: Grade P
A: Grade A
X: Others
|
13/15:1310/1550nm
98/15:980/1550nm
14/15:1480/1550nm
X:Others
|
1：Φ3mm×54mm
2：Φ3mm×56mm
3：Φ4mm×65mm
4：Φ3mm×70mm
5：90×20×10mm
6：100×80×10.5mm
7：120×80×18mm
8：140×115×18mm
9：2.4mm×30mm
10：3.0mm×35mm
11：3.0mm×45mm
X: Others
|
1: G652
2: G657A1
3: HI1060Flex
4: OFS 980-16
5: HICER98
6: Others
|
25:250um
90:900um
20:2.0um
30:3.0um
X:Others
|
05:0.5m
10:1.0m
15:1.5m
X:Others
|
OO:None
FP:FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
STA: ST/APC
LP: LC/PC
LA: LC/APC
X: Others
|
|
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
