Description

¼æÈÝ°²»ª¸ßHFBR-5911ALZ

Product Description
F-tone Networks’s FTBR-59L1ALZ_FTBR-5911ALZseries of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 1.25Gbps. The module is fully compliant with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA).These transceiver modules provides the system designer with Telecom, Datacom, Digital Video and other Fibre Channel applications.

Product Features
¡ñ VCSEL Laser Diode Transmitter
¡ñ Distance up to 300m at MM Fiber
¡ñ 3.3Vpower supply
¡ñ LC duplex optical interface
¡ñ CML Differential Input , Output and LVTTL signal detect
¡ñ Class 1 Laser International Safety Standard IEC 825 Compliant
¡ñ Operating case temperature range (Standard£º0 to +70¡æ) or (Industrial£º -40°C to +85°C)

Application
¡ñ Fiber Channel
¡ñ Digital Video system
¡ñ Other optic link

Absolute Maximum Ratings
Operating of the transceiver beyond the Absolute Conditions Listed in Table 1 will degrade or damage the product. It’s not implied that the product would function above the recommended operating environment, it’s possible to reduce the reliability and lifetime of device if Recommended Operating Environment is exceeded (Refer to table 2)

Table 1--- Absolute Maximum Conditions

Parameter

Symbol

Min

Max

Units

Note

Storage Temperature

TST

-40

+85

¡æ

-

Relative Humidity

RH

5

95

%

-

Supply Voltage

VCC

0

+3.6

V

-


Table 2--- Recommended Operating Environment and Electrical Characteristics

Parameter

Symbol

Min

Typ

Max

Units

Note

Supply Voltage

VCC

+3.1

+3.3

+3.5

V

-

Supply Current

Icc

-

-

260

mA

-

Operating Case Temperature

TOP

0

-

+70

¡æ

1

-40

-

+85

2

Data Rate

B

1000

2488

3100

Mbps

-

Soldering temperature(electric-soldering-iron)

-

-

-

350

¡æ

3

Soldering duration(electric-soldering-iron)

-

-

-

5

Sec

3


Note
1.standard level
2.industrial level
3.Not recommended wave soldering

Electrical Parameters
Table 4--- Transceiver Electrical Characteristics
(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Parameter

Symbol

Min

Typ

Max

Units

Note

Supply Voltage

VCC

+3.1

+3.3

+3.5

V

-

Supply Current

ICC

-

-

260

mA

-

Transmitter

Differential Input Voltage

Vin

200

-

1000

mVP-P

-

Input Differential Impedance

Zin

90

100

110

Ω

-

TX_DISABLE

Disable

VD

2.0

-

Vcc

V

-

Enable

VEN

0

-

0.8

-

Receiver

Differential Output Voltage

VOUT

100

-

1000

mVP-P

-

Output Differential Impedance

Zout

90

100

110

Ω

-

SD Output Voltage-Low

VOL

0

-

0.8

V

1

SD Output Voltage-High

VOH

2

-

VCC

V

1

Pin Definitions

24 21 4


Table 5— Pin Function Definitions

Pin #

Pin Name

Description

Note

1

VEER

Receiver Ground

-

2

VCCR

Receiver Power Supply

-

3

SD

Signal Detect.   (LV)TTL output

1

4

RD-

Inv. Received Data Out

-

5

RD+

Received Data Out

-

6

VCCT

Transmitter Power Supply

-

7

VEET

Transmitter Ground

-

8

TDIS

Transmitter Disable

2

9

TD+

Transmit Data In

-

10

TD-

Inv. Transmit Data In

-

Note1£ºLVTTL-Normal optical input levels to the receiver result in logic “0 or 1” output,pull-up 10kΩresistor.
Note2£ºThe is an input that is used to shut down the transmitter optical output. Transmitter on in logic “0”.

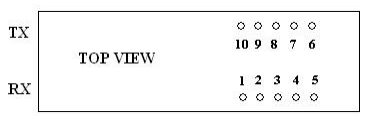

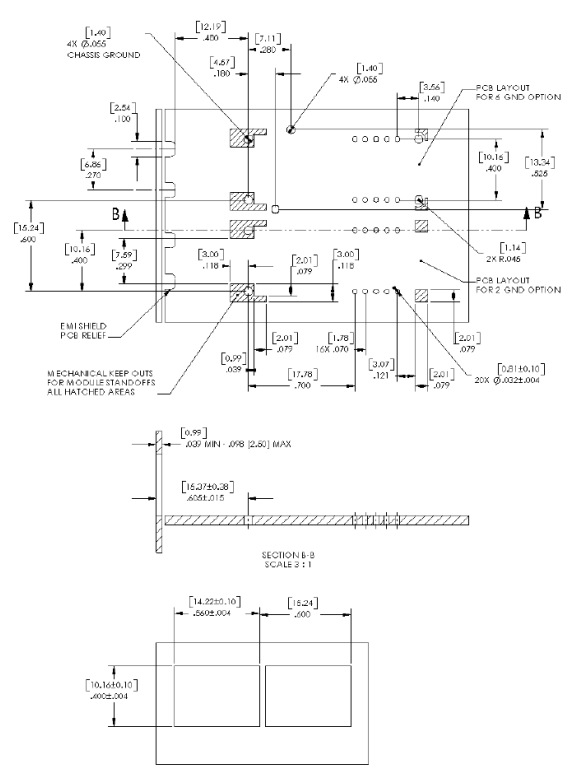

Recommended Board Layout Hole Pattern

24 21 4

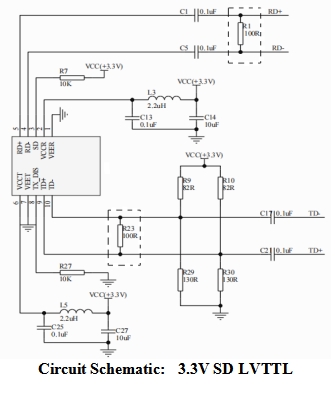

Recommended Circuit Schematic
24 21 4

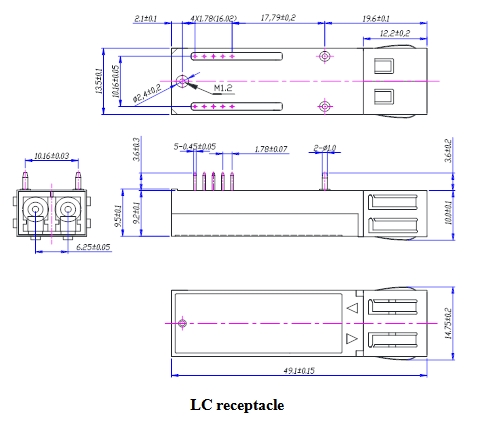

Module Outline Drawing

24 21 4
Order Information

Type

Fiber Type

Wavelength(nm)

Fiber Length(Km)

Ì滻ƷÀà

FTBR-59L1ALZ

MM

850(VCSEL)

0.3

¼æÈÝHFBR-59L1ALZ £¬¹ú²úÌæ»»HFBR-59L1ALZ

FTBR-5911ALZ

MM

850(VCSEL)

0.3

¼æÈÝFTBR-5911ALZ £¬¹ú²úÌæ»»FTBR-5911ALZ













ÆäËûÁíÓдó×Ú¿ÉÌæ»»avago finisar ....µÈµÈÆ·ÅƵIJúÆ· £¬ÇëÁªÏµ´ó±¦ÓéÀÖµÄÊг¡ÈËÔ±

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
