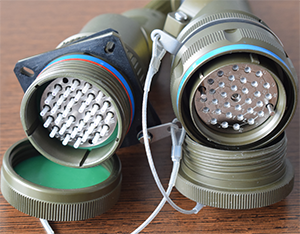

J599III电连接器
Description
J599III电连接器
产品介绍
切合GJB599B(MIL-DTL-38999M)III系列标准;三头螺纹快速连接,并带有防松结构;五键圆周识别定位,可实现盲插和防错插;外壳体可选用差别质料及镀层以适应差别情况要求;具有电磁屏蔽功效;体积小,重量轻,接触偶密度高;产品用于较强振动、淋雨、风砂和湿润等庞大情况。
技术参数
| 机械寿命 | 500次循环插拔 |
|---|---|
| 攻击 | 3ms半正弦波 加速度峰值300g |
| 振动 | 正弦振动： 60g |
| 随机振动（高温）：功率谱密度1g 2/Hz ，总均方根值41.7g | |
| 随机振动（常温）：功率谱密度5g 2/Hz ，总均方根值49.5g | |
| 温度规模 | K、F类：-65℃～+200℃ |
|
W、MW类：-65℃～+175℃ 盐雾：K类：1000h |
|
| 盐雾 | K类：1000h |
| F类：48h | |
| W类：500h | |
| 500h（酸性大气） | |
| 湿热 | 按MIL-DTL-38999M：24小时10循环 |
| 耐液 | 耐多种燃料 ，冷却剂 ，溶剂 |
| 密封 |
插配连接器切合MIL-DTL-38999M低气压浸渍的要求 |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
