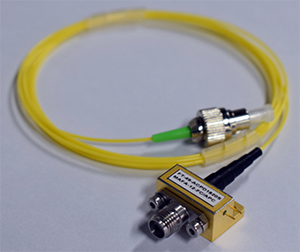

Features:
¡ñ Wide Bandwidth
¡ñ Internal Bias-T
¡ñ DC Coupled
¡ñ Hermetically sealed, SMA connector
Applications:
¡ñ High Speed Optical-fiber Communication
¡ñ Microwave Photonic Link
¡ñ High speed Test and Measurement
Absolute Maximum Rating (@T C = 22±3¡æ)
Parameter |
Sym |
Rating |
Unit |
Storage temperature range |
TSTG |
-45~+85 |
¡æ |
Operating case temperature range |
TC |
-40~+70 |
¡æ |
Bias Voltage |
VR |
12 |
V |
Optical Input Power |
Pin |
13 |
dBm |
Lead soldering temperature |
TP |
260£¨10s£© |
¡æ |
Electrical/Optical Characteristics (@T C = 22±3¡æ)
Parameter |
Sym |
Test Condition |
Parameter values |
Unit |
||
Wavelength range |
λ |
- |
1000-1650 |
nm |
||
Frequency range |
- |
- |
C Band |
X band |
Ku band |
- |
Small signal bandwidth |
f-3dB |
V R =5V,λ = 1.55μm P in =0dBm£¬R L =50Ω |
DC~8 |
DC~12 |
DC~18 |
GHz |
Responsivity |
Re |
V R =5V, P in =0dBm λ = 1.55μm |
≥0.85 |
≥0.80 |
≥0.80 |
A/W |
Amplitude Flatness |
F |
- |
≤±1.5 |
dB |
||
Output VSWR |
VSWR |
- |
≤2.0:1 |
≤2.0:1 |
≤2.5:1 |
- |
Dark current |
ID |
V R =5V, P in =0mW |
≤20 |
nA |
||
1dB compression point saturationInput Optical Power |
Ps |
VR =5 V,λ=1.55μm£¬ Central Frequency fc=9.5GHz£¬ RFin =-10dBm, Pin =1 mW |
≥10 |
dBm |
||
Optical return loss |
Lo |
λ=1.55μm |
≥27 |
dB |
Typical Response Curves

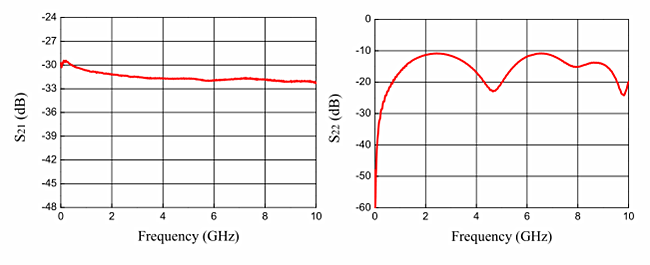

Fig.1 C-Band Photodetector Frequency Response Cruve

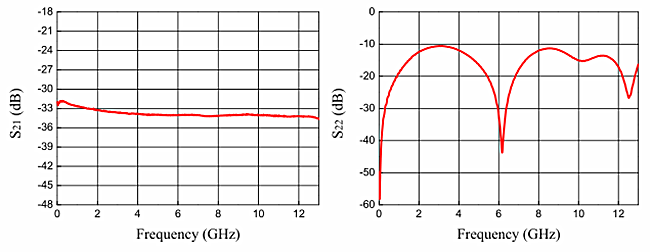

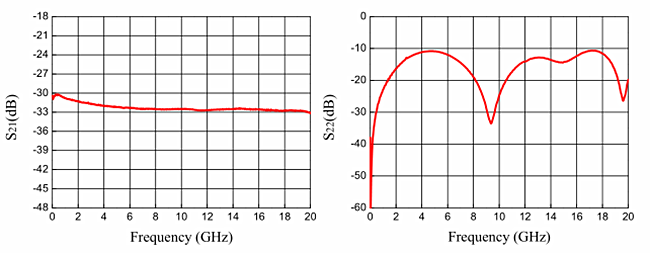

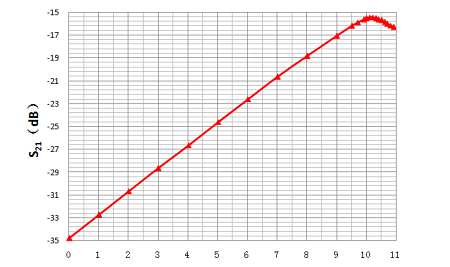

Fig.2 X-Band Photodetector Frequency Response CruveFig.3 Ku-Band Photodetector Frequency Response CruveFig.4 1dB Compression Point Saturation Input Optical Power Cruve

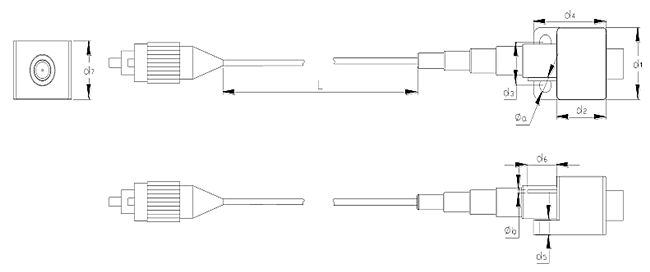

The packages and the pins (Unit: mm)
Size |
Sym. |
|||||||||
d1 |
d2 |
d3 |
e |
d4 |
d5 |
d6 |
φa |
φb |
L |
|
Min |
17.8 |
12.5 |
12.5 |
2.4 |
2.5 |
9.0 |
7.5 |
2.0 |
0.4 |
1000.0 |
Max |
18.2 |
13.0 |
13.0 |
2.6 |
3.5 |
9.4 |
7.7 |
2.2 |
0.5 |
- |
Ordering Information
FT-93-LDPD45220R |
X |
x |
|
Tabel2 |
Table3 |
Table 2 Analog Bandwidth
Code |
Band |
Analog Bandwidth |
C |
CBand |
DC~8GHz |
X |
XBand |
DC~12GHz |
Ku |
KuBand |
DC~18GHz |
Table 3 Fiber Connector
Code |
Connector Type |
Remark |
0 |
No Connector |
single-mode 9/125 μm fiber pigtail |
1 |
FC/PC |
|
2 |
FC/APC |
Qualification Information
Photodetector module has passed reliability assurance requirements as specified by GJB 8120-2013.
Precautions
— The fiber bending radius no less than 20mm for avoiding fiber damaged.
— Be sure the fiber coupling facet is clean before connecting it to opto-circuit.
— The suitable ESD protection is required in storage, transportation and using.
