HDMI 2.0Type D AOC

0.0/5 rating (0 votes)

Description

1.产品概述

HDMI 2.0 Type D A00(带 Type A转接头)是大宝娱乐推出的光纤连接线。该线缆以光纤作为高清信号传输介质,支持HDM2.0协议,拥有小型化 Type D外壳,是市面上成熟、有竞争力的高清互连计划。

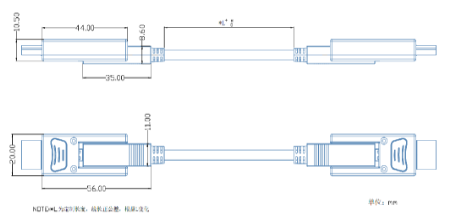

2.规格尺寸

3.产品特点
(1) Type D接头拥有超小的外型尺寸:35mm13.9mmX8.6mm,容易穿管

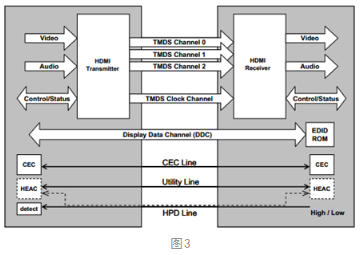

(2)内嵌先进的光学引擎,支持超长距离的信号传输。并且,即插即用,无需外接电源及功率放大单位。如下图3

(3)接纳光纤传输TMDs高频信号,铜线传输GEG、HEAC等控制信号,具有很好的抗电磁和射频滋扰。产品能够在富有挑战性的情况下稳定、可靠的事情

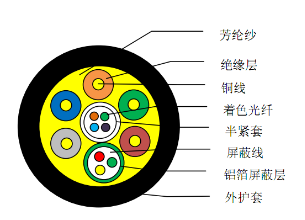

(4)缆线接纳光电复合缆结构,缆芯由四芯光单位和七根电单位组成,芳纶纱作为增强件,玄色PVG外护套组成,外径仅4.8mm。如下图4

图4

（5）切合HDMI 2.0协议规范，兼容HDMI 1.4协议规范。
（6）接受客户差别的定制需求，提供技术支持。
4.性能参数

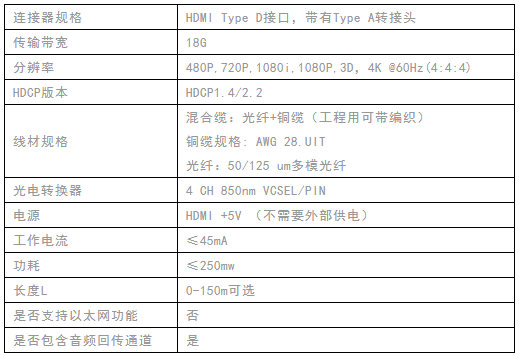

大宝娱乐HDMI 2.0Type D AOC的性能参数如下图所示。

5.测试设备
Quantum线材测试设备
804B信号源
Sony 4K播放器

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
