FT-62-U3HC-A0A0有源光缆
Description
U3C-A0A0有源光缆
该款产品有两个USB3.0标准A连接器,每个连接器均内含一个V0510芯片用于实现光电转换,中部连接线为高速多模光纤用于传输信号。大宝娱乐FT-62-U3HC-A0A0 USB3.0线缆是一款有源光缆产品（AOC）,可将USB3.0的传输距离延长至100米（330英尺）。FT-62-U3HC-A0A0利用两端USB3.0标准A连接器的VBUS进行供电。
产品特点:
● USB3.0线缆可扩展至100米
● 接纳850nm多模光缆，制止EMI / RFI滋扰，使用更宁静
● 兼容USB3.0标准A接口
● 支持USB3.0 5Gbps带宽
● 配合SuperTT转换技术，可以向下兼容USB2.0/USB1.1设备
● 需要USB总线5V电源支持
● 即插即用（不需软件装置）
● 低功耗
应用场景:
● 机械视觉用相机扩展
● 宁静监控相机扩展
● 数字标牌及电视墙
● 智能数字视频监控系统
● 零客户端系统传输
● 远程存储
产品需求:
为完成U3C-A0A0的装置，您需要配备以下产品：
● 兼容USB 3.0盘算机（主机）及兼容USB 3.0操作系统
● 兼容USB 3.0的设备
注意:通过与可选配件配合使用（U3D02AR/U3H02AR）,该产品也可支持兼容USB 2和1.1的设备。
可选配件
● U3D02AR（(长芯盛SuperTT转换适配器,带A口插座,可支持有源光缆)
● U3H02AR（长芯盛USB扩展集线器,带A口插头,包括USB3.0集线器芯片和U3TT芯片,可支持有源光缆）

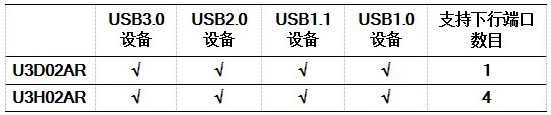

可选配件支持设备及端口数量如下：
注意：
USB3.0 AOC的开发套件包括USB3.0 有源光缆,U3D02AR 和U3H02AR.详细信息请拜见USB3.0有源光缆开发工具包用户指南.
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
