40G QSFP+ SR4

Description
The F-tone Networks FTCQ-4X-SR4xx is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps bandwidth. Each lane can operate at 11.3 Gbps up to 100 m using OM3 fiber or 150 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates F-tone Networks proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features
¡ñ 4 channels full-duplex transceiver modules
¡ñ Transmission data rate up to 11.3Gbps per channel
¡ñ 4 channels 850nm VCSEL array
¡ñ 4 channels PIN photo detector array
¡ñ Low power consumption <1.5W
¡ñ Hot Pluggable QSFP form factor
¡ñ Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
¡ñ Single MPO connector receptacle
¡ñ 3.3V power supply voltage
¡ñ RoHS 6 compliant(lead free)
¡ñ Case operating temperature
         Commercial: 0 ~ +70¡æ
         Industrial: -40 ~ +85¡æ
         Extended:-55~+85¡æ

Applications
¡ñ 40G Ethernet and OTU3
¡ñ Datacom/Telecom switch & router connections
¡ñ Data Aggregation and Backplane Applications
¡ñ Proprietary Protocol and Density Applications
¡ñ Infiniband transmission at 4ch SDR, DDR and QDR

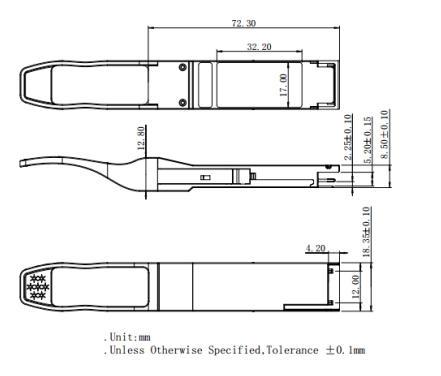

Mechanical Dimensions
Ordering information

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
