FT 1064 nm Single Fiber Collimator
Description

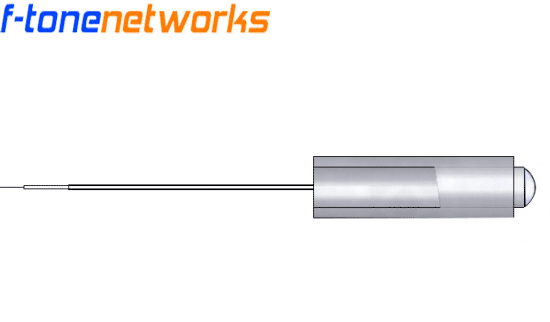

FT 1064 nm Single Fiber Collimator
The 1064nm Fiber Collimator is the basic element for in-line fiber optics components, such as isolator and WDM. It has low insertion and high return loss. The unique processing and high quality FT coating also enable this collimator to handle high power.
|
Specifications |
||
|
Parameter |
Unit |
Value |
|
Center Wavelength (λc) |
nm |
1064 |
|
Operating Wavelength Range |
nm |
λc ± 30 |
|
Working Distance |
mm |
5 or specify |
|
Typ. Insertion Loss |
dB |
0.25 |
|
Max. Insertion Loss |
dB |
0.3 |
|
Min. Return Loss |
dB |
55 |
|
Tensile Load |
N |
5 |
|
Fiber Type |
||
|
Operating Temperature |
℃ |
-5 to +70 |
|
Storage Temperature |
℃ |
-40 to +85 |
