非金属野战光缆
Description
非金属野战光缆
产品简介
专门为野战和庞大情况下快速布线或重复收放条件下使用而设计的光缆，重量轻、抗张力大、抗压力强 ；柔软性好 ；易弯曲 ；耐油、耐磨、阻燃 ；适用温度规模广等特点。适用于军用野外通信系统快速布线或重复收放 ；雷达、航空和舰船布线 ；油田、矿山、口岸、电视现场转播、通信线路抢修等条件严酷的场合。
产品特点
-
接纳紧凑的全介质配线型结构，内为Ф0.9mm紧套光纤，使光缆具有极高的强重比，便于快速布线 ；
-
复合结构的高强度光纤二次被覆，提供了最好的温度性能和最小的附加衰减，确保光缆在卑劣条件下的可靠性和使用寿命 ；
-
特制的高强度、柔韧型中心增强元件，包管光缆的强度和弯曲性能 ；
-
大面积的芳纶增强纤维为光缆提供了极高的机械强度 ；
-
小节距SZ绞合的紧套光纤和单螺旋绞合的芳纶纤维相组合，包管野战光缆有较大的拉伸应变能力 ；
-
热塑性聚氨酯弹性体阻燃护套为光缆提供了良好的结构稳定性和抗压、耐磨、耐油、低温柔韧和阻燃等性能
主要应用于
-
军用通信
-
煤矿、油井、天然气等
-
地质勘探通信
-
激广播电视转播
-
应急抢通光纤通信
光纤性能
产品参数

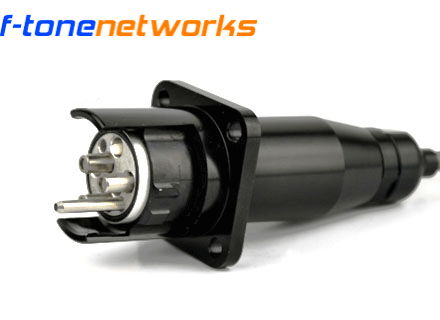

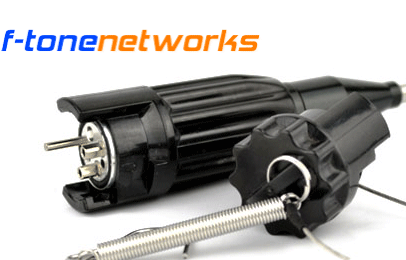

配套连接器
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
