DWDM SFP Optical Transceiver
Description
DWDM SFP Optical Transceiver
Description
F-tone DWDM SFP Transceiver exhibits excellent, wavelength stability, supporting operation at 100 GHz channel,cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and FiberChannel applications.
The transceiver consists the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. F-tone DWDM SFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage, laser temperature and TEC current.
Features
● Wavelength selectable to C-band and L-band ITU-T grid wavelengths
● Suitable for use in 100GHz channel spacing DWDM systems
● DWDM SFP MSA Compliant
● Up to 2. 667Gb/s data rate
● Cold Start up Wavelength Compliance
● Low Power Dissipation <1.3W Maximum
● Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power, Laser temperature and TEC current
● Extended link budget with APD receiver technology
● OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm) Versions
● RoHS compliant and lead free
● Operating Case Temperature
Standard: -5 to 70°C
Extended: -20 to 70°C
Applications
● SFP Transceivers for DWDM SONET/ SDH
● Ethernet IEEE 802.3ae
● Fiber Channel
Mechanical Dimensions

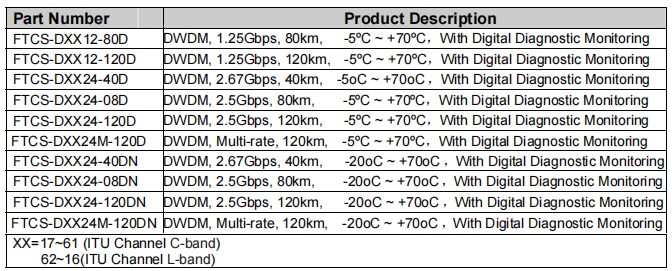

Part Number Ordering Information
注：本产品有全国产化型号可选
本产品为SFP DWDM系列光�？�，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
