C band /L band MEMS Variable Optical Attenuator
Description
Key Features:
● Low Insertion Loss&Low Polarization Dependent Loss
● Ultra-low Wavelength Dependent Loss
● Excellent Reliability Performance
Applications
● Gain control in erbium doped fiber amplifiers (EDFAs)
● Power equalization in WDM system
● Receiver protection
● Transmitter power control
Compliance
● ROHS
● GR1221&GR1209
Specifications
|
Parameter |
specification |
unit |
comments |
||||
|
Min |
typ. |
Max |
|||||
|
Attenuation type |
Dark or bright |
|
|
||||
|
Operation wavelength range |
C band 1525-1575nm L band 1570-1610nm |
|
|
||||
|
Insertion Loss |
|
|
0.6 |
dB |
Excluding connectors |
||
|
Attenuation range |
3 |
|
|
dB |
|
||
|
Tuning speed |
|
2 |
|
ms |
|
||
|
Optical power handling |
|
300 |
|
mw |
|
||
|
Wavelength dependence |
|
|
|
|
Over C or L bands over operating temperature |
||
|
At insertion loss(IL) |
|
|
0.2 |
dB |
|
||
|
At 15 dB |
|
|
0.4 |
dB |
|
||
|
At 20 dB |
|
|
0.5 |
dB |
|
||
|
Polarization dependence loss |
|
|
|
|
|
||
|
0 to 10 dB |
|
|
0.15 |
dB |
|
||
|
10 to 15 dB |
|
|
0.3 |
dB |
|
||
|
Repeatability |
|
|
0.1 |
dB |
|
||
|
Return loss |
50 |
|
|
dB |
Excluding connectors |
||
|
Drive voltage |
6.5 or 18 |
V DC |
Customized available in full dynamic range |
||||
|
Drive power |
1.5 |
mW |
|
||||
|
Fiber type |
9/125/250 |
Coming SMF-28 |
|
||||
|
Operating temperature |
-5 |
|
75 |
℃ |
|
||
Note : Spec can be defined by customer

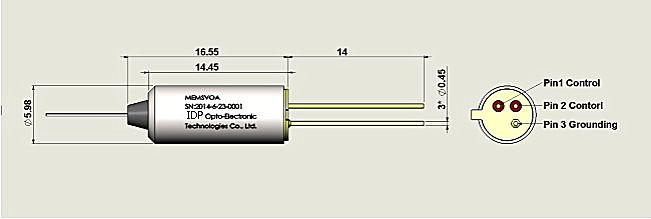

Outline Drawing
