保偏波分复用器
Description
Polarization Maintaining Filter Wavelength Division Multiplexer
Features:
?● Low insertion loss
?● High extinction ratio
?● High Return Loss
?● Excellent environmental stability
and reliability
|
Applications:
|
 |
Compliance:
? ● Telcordia GR-1209-CORE
? ● Telcordia GR-1221-CORE
? ● RoHS

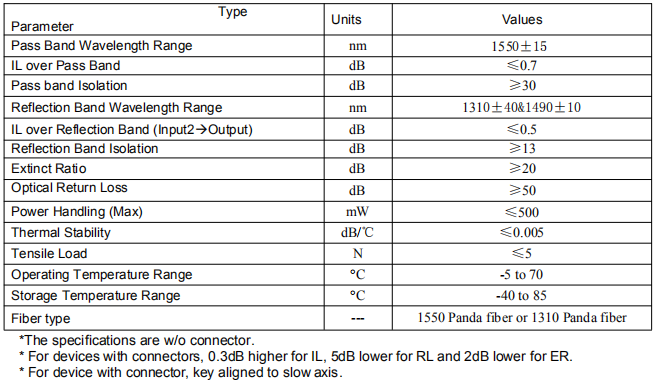

Specifications:

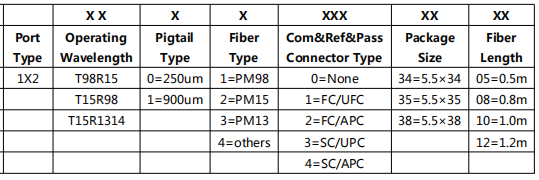

Product Ordering information:FT-45-PMFWDM
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
