Key features and benefits
¡ñ Power supply connector
¡ñ Pre-leading earth contact
¡ñ Breaking capacity
¡ñ Robust, ruggedized, water pressure sealed, for shielded cable
¡ñ Compliant with EN60664-1 ( VDE0110 ) and VDE0620-1
¡ñ Qualified to VG96918
¡ñ RoHS conform aluminium shell, Black Zinc Nickel plated

Description

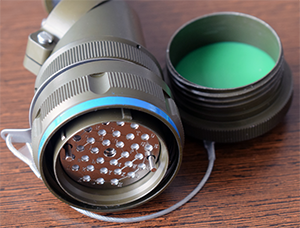

848 is an energy supply connector in full accordance with the military standard VG96918. The robust reverse bayonet locking system, derived from VG95234, in combination with the IP 68 sealing and a conus design backshell for shielded cable and heat shrink boot make this connector the perfect match for all harsh environments, whether in Heavy Industries, Geophysics or Defence Applications.
It offers 3 shell sizes with layouts for single phase 250V/16A or 3 phase 500V/25A up to 500V/63A and covers all standardized energy supply classes of VDE0620-1.
The first mate-last break ground contact is safely connected to the shell. The additional pilot contact allows the use in hot mate/unmate conditions ( breaking capacity ).
The solid aluminium alloy shell is plated with our proven Zink Nickel process und withstands 500 hrs salt spray and 500 mating cycles and complies with RoHS requirements.
The machined and silver plated contacts are designed for crimping.

Technical Data
¡ñ Temperature Range: -55°C to + 85°C
¡ñ Salt spray resistance: 500h
¡ñ Shielding: 10KHz-3MHz: 70dB min
                    100 MHz-1000MHz: 40dB min
¡ñ Sealing: IP68
¡ñ Durability : 500 mating/unmating mating cycles
¡ñ Compliant with DIN EN 60664-1 , pollution degree 3

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
