Description
The F-tone Networks FTQD-8H-SR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFPDD Double Density for 800 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnection applications. It integrates eight data lanes in each direction with 8x53.125GBd. Each lane can operate at 106.25Gbps up to 60 m using OM3 fiber or 100 m using OM4 fiber with FEC. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The optical interface uses 16 fiber MTP (MPO) connector. The Common Management Interface Specification (CMIS) for OSFP modules, This module incorporates F-tone Networks Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features
¡ñ 8 channels full-duplex transceiver modules
¡ñ Transmission data rate up to 106.25G per channel
¡ñ 8x106.25Gbps PAM4 transmitter and PAM4 receiver
¡ñ 8 channels 850nm VCSEL array
¡ñ 8 channels PIN photo detector array
¡ñ Internal CDR circuits on both receiver and transmitter channels
¡ñ Power consumption <13.5W
¡ñ Hot Pluggable QSFPDD form factor and Compliant with CMIS
¡ñ Maximum link length of 60m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC
¡ñ MPO16 APC connector receptacle
¡ñ Built-in digital diagnostic functions
¡ñ Operating case temperature 0°C to +70°C
¡ñ 3.3V power supply voltage
¡ñ RoHS compliant(lead free)

Applications
¡ñ IEEE 802.3db 2 x 400GBASE-SR4 Ethernet (PAM4)
¡ñ The transceiver is designed for Ethernet, Telecom and Infiniband use cases.

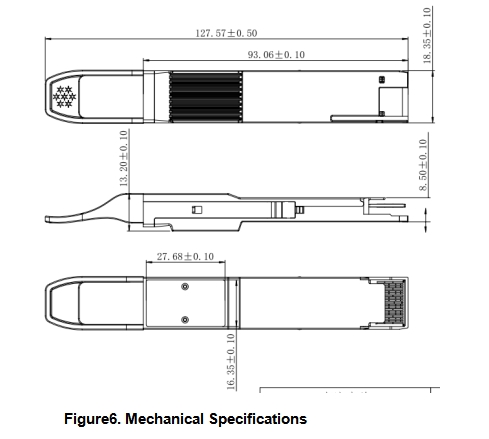

Mechanical Dimension
Ordering information
