6GHz S-Mini Analog Optical Transceiver With Fiber(wA) DS
Description
6GHz S-Mini Analog Optical Transceiver With Fiber(wA) DS
特点
● 超小体积 30mm*8.4mm*7mm
● 超宽的事情频率规模 100MHz～18GHz
● +5V 单电源事情
● 可集成射频放大
● 支持 ITU C 波段
● 自动温度控制（ATC）功效和光功率告警功效
● 平坦的频率响应
● 大动态规模
● 精彩的 EMC/EMI 设计
运用
● 光源
● 天线拉远
● 光纤延迟线
● 漫衍式天线系统
● 宽带无线通信
● OFDM 光纤传输系统

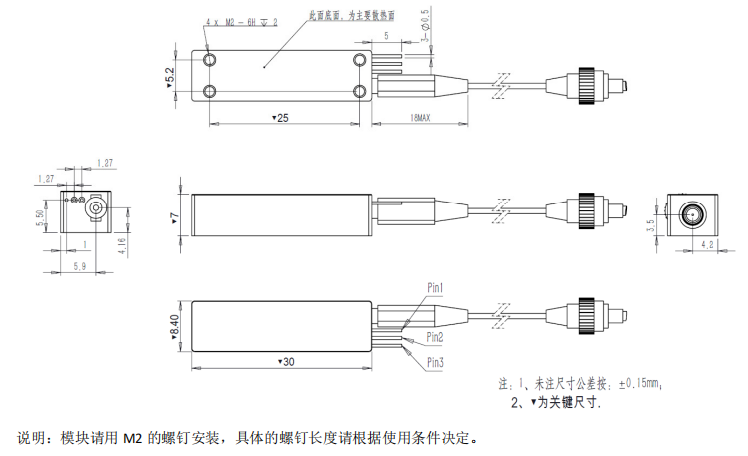

机械结构 (单位: mm)
订购信息
注：本产品有全国产化型号可选
本产品为FT-79系列，仅展示部分参数，如有需要，请联系大宝娱乐 。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
