标准光� ？�
6.25Gbps单模 MiniSFF单纤双向光收发一体� ？�
Description
6.25Gbps单模 MiniSFF单纤双向光收发一体� ？�
产品特征
● 纯国产零部件
● 高可靠、全金属外壳、抗振动设计
● 3.3V单电源供电
● 宽事情温度规模
● MiniSFF封装，FC接口
● 传输距离：10km
● SD输出告警
● 事情温度：
FTFC-B2762-02-GC / FTFC-B3362-02-GC : 0℃~+70℃
FTFC-B2762-02I-GC / FTFC-B3362-02I-GC : -40℃~+85℃
产品应用
● 以太网、Sonet/SDH、交换机等数字光纤通信系统
● 光纤通信链路

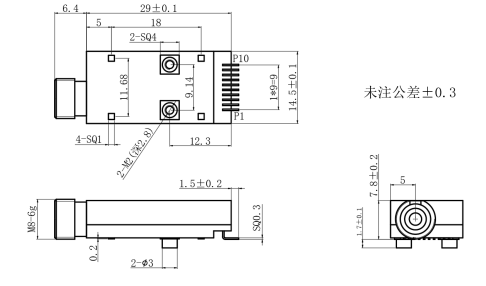

外形尺寸
订购须知
|
型号 |
封装 |
速率 (Gb/s) |
距离 (km) |
波长 (nm) |
电压(V) |
发射功率 (dBm) |
接收灵敏度 (dBm) |
温度 (℃) |
|
FTFC-B2762-02-GC |
FC |
6.25 |
10 |
TX1270DFB/RX1330 |
3.3 |
-8 to +0.5 |
-14.4 |
0 ~70 |
|
FTFC-B3362-02-GC |
TX1330DFB/RX1270 |
|||||||
|
FTFC-B2762-02I-GC |
FC |
6.25 |
10 |
TX1270DFB/RX1330 |
3.3 |
-8 to +0.5 |
-14.4 |
-40 ~85 |
|
FTFC-B3362-02I-GC |
TX1330DFB/RX1270 |
本产品为FTFC系列，仅展示部分参数，如有需要，请联系大宝娱乐。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
