4CH Lan-WDM Spec

²úÆ·ÃèÊö/Description
We can offer full range of WDMCWDM/DWDM products including common CWDM packed in ABS box with single devices spliced inside and second generation MINI CWDM modules utlizes free space technology. And also third generation ultra MINI CWDM module for 40G application. This document specifies the performance of a ultra MINI WDM module which also utlizesfree space technology but with ultra-compact size and high reliability for 40G, 100G or 100G application. All CWDM productsare Telcordia GR-1209 and GR-1221 compliance.

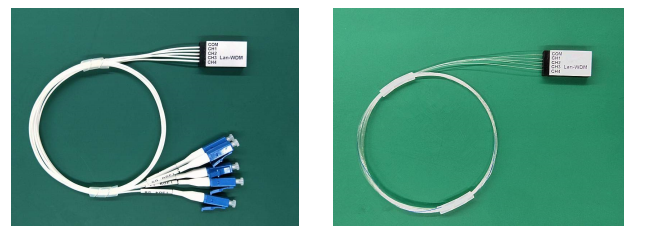

²úƷʾͼ/Product picture

Ìصã/Features
¡ñ µÍËðºÄLow Insertion Loss
¡ñ ¸ßÎȶ¨ÐԺͿɿ¿ÐÔ/High Stablity and Reliability
¡ñ ³ß´çС/Compact size

Ó¦ÓÃ/Applications:
¡ñ ¸ßËÙÂʹâÄ
£¿é/High Speed Transceiver Solution
¡ñ µçÐÅͨÐÅ/Telecommunication

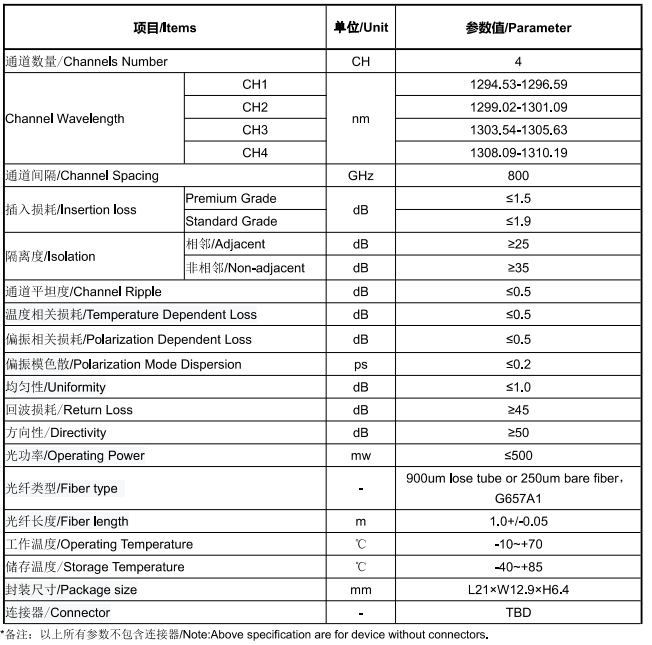

ÐÔÄܹæ¸ñ/Performance Specifications

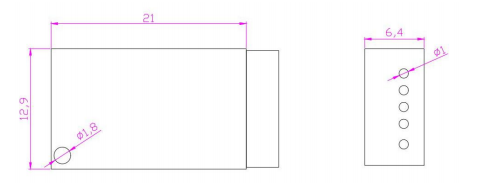

ʾÒâͼ/Package Dimension

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡±¾
²úƷΪFT-13ϵÁв¨·Ö¸´ÓÃÆ÷£¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
