400G 2km QSFP-DD FR4 Optical Transceiver

Descriptions
FTQD-4H-FR4 transceiver is designed for use in 400Gb/s network applications, the maximum transmission distance is 2km. FTQD-4H-FR4 is a fully integrated optical transceiver modulated using 4-level pulse amplitude modulation (PAM4) format that transmits and receives optical signals with aggregated data rate of 425Gbps over 4 lanes on CWDM wavelength grids each running at 106.25Gbps.They are compliant with the QSFP-DD MSA and 400GBASE-FR4 optical specifications.FTQD-4H-FR4 are compliant with RoHS.

Product Features
¡ñ Compliant with IEEE Std 802.3cd
¡ñ Compliant with 400G-FR4 optical specifications
¡ñ Compliant with QSFP-DD MSA
¡ñ Compliant with CMIS4.0 Management interface specifications
¡ñ Duplex LC receptacles
¡ñ 53.125GBd PAM4x4 un-cooled EA-DFB LD
¡ñ 26.5625GBd PAM4x8 electrical connector
¡ñ Transmission distance up to 2km
¡ñ Single +3.3V power supply
¡ñ Commercial operating temperature:0¡æ to +70¡æ
¡ñ RoHS Compliant

Applications
¡ñ 400G BASE-FR4 Ethernet
¡ñ Coarse wavelength division multiplexing systems

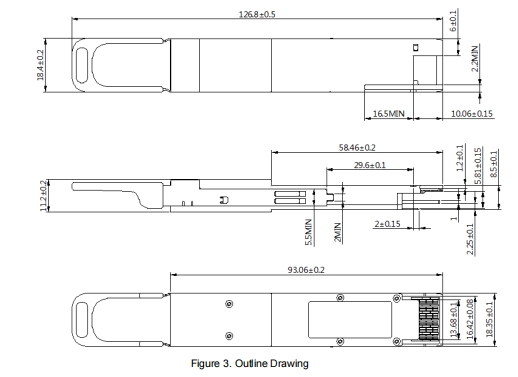

Mechanical Specifications

±¾²úƷΪFT-XMϵÁÐ£¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ
¡£
×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
