2x2 Polarization Maintaining Optical Circulator(Fast axis blocked)
Description
大宝娱乐专业研发制造：2x2 Polarization Maintaining Optical Circulator(Fast axis blocked),商业级2x2 Polarization Maintaining Optical Circulator(Fast axis blocked),工业级2x2 Polarization Maintaining Optical Circulator(Fast axis blocked),2x2 Polarization Maintaining Optical Circulator(Fast axis blocked)保偏光器件,是一个很是专业的2x2 Polarization Maintaining Optical Circulator(Fast axis blocked)厂家 ，有很好的2x2 Polarization Maintaining Optical Circulator(Fast axis blocked)价格。大宝娱乐研爆发产的2x2 Polarization Maintaining Optical Circulator(Fast axis blocked)广泛应用于航天、航空、电力、铁路、医疗、交通、通信、等各大领域。
|
2x2 Polarization Maintaining Optical Circulator(Fast axis blocked)
|
||||||
|
Features |
Applications |
|||||
|
Low Insertion Loss |
EDFA & Raman Amplifier |
|||||
|
High Return Loss |
Fiber Sensor |
|||||
|
High Isolation |
Fiber Instrument |
|||||
|
High Extinction Ratio |
||||||
|
High Reliability& Stability |
|
|||||
|
|
||||||
|
Specifications |
||||||
|
Parameter |
Unit |
Value |
||||
|
Type |
- |
Type A |
Type B |
|||
|
Center Wavelength |
nm |
1310& 1550 |
1310 &1550 |
1064 |
||
|
Operating Wavelength Range |
nm |
±30 |
±20 |
±5 |
||
|
Typ.Peak Isolation 23℃ |
dB |
50 |
30 |
30 |
||
|
Min.Isolation at 23℃ |
dB |
40 |
20 |
28 |
||
|
Typ.Insertion Loss at 23℃ |
dB |
0.8 |
0.7 |
2.1 |
||
|
Max.Insertion Loss at 23℃ |
dB |
1.1 |
1.0 |
2.8 |
||
|
Min.Extinction Ratio |
dB |
20 |
20 |
20 |
||
|
Min.Cross Talk |
dB |
50 |
||||
|
Min.Return Loss |
dB |
50 |
||||
|
Max.Optical Power(CW) |
mW |
300 |
||||
|
Max.Tensile Load |
N |
5 |
||||
|
Fiber Type |
- |
PM Panda Fiber |
||||
|
Operating Temperature |
℃ |
-5~+70 |
||||
|
Storage Temperature |
℃ |
-40~+85 |
||||
|
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower; |
||||||
|
The default connector key is aligned to slow axis; |
||||||
|

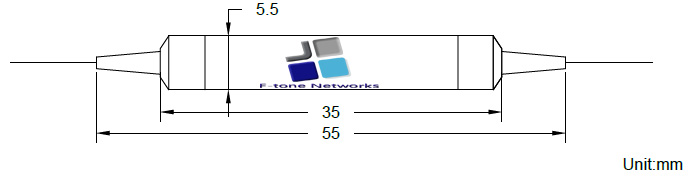

Package Dimensions |
||||||
 |
||||||
|
Ordering Information |
||||||
|
PMCIR-1111-23456-7777 |
||||||
|
1111 |
-Center wavelength: |
1550=1550nm,1310=1310nm,......,0850=850nm |
||||
|
2 |
-Port type: |
3=3-Port, 4=4-Port |
||||
|
3 |
-Stage: |
A=A grade, B=B grade |
||||
|
4 |
-Axis alignment: |
F=Slow axis working, Fast axis blocked |
||||
|
5 |
-Pigtail type: |
0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0 loose tube |
||||
|
6 |
-Fiber length: |
0=0.8m,1=1m |
||||
|
7777 |
-Connector type: |
0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC |
||||
