标准光�？�
25Gbps 1310nm SFP28 液冷光�？�
Description
25Gbps 1310nm SFP28 液冷光�？�
产品描述
F-tone Networks FTCS-25G-LR-2XX-xxx是一款单通道可插拔光纤SFP28 ，适用于25千兆以太网和CPRI Option 10应用 ，它的设计特别可靠 ，可实现液体浸没情况。它是一款高性能�？� ，适用于10公里以内的25.78125 Gbps短程数据通信和互连应用。该�？樯杓朴糜谠诒瓿撇ǔの�1310nm的单模光纤系统上运行。电气接口使用20触点边沿型连接器。尾纤的光学接口是可选的。该�？榫橹さ牡缏泛图际� ，可提供可靠的长寿命、高性能和一致的效劳。
特征
● 可热插拔SFP28外形尺寸
● 支持25Gbps数据速率
● 最大链路长度10km
● 非制冷1310nm DML发射器和PIN接收器
● 发射器和接收器通道上的内部CDR
● 可选尾纤类型和长度
● 单路3.3V电源
● 功耗<1.5W
● 切合RoHS（2011/65/EU ，无铅）
● 外壳事情温度
商业级：0~+60℃
工业级：-40～+85℃
应用
● 25GBASE-LR以太网
● CPRI选项10
● 液体浸泡情况
● 通过CDR旁路支持10G CPRI选项8

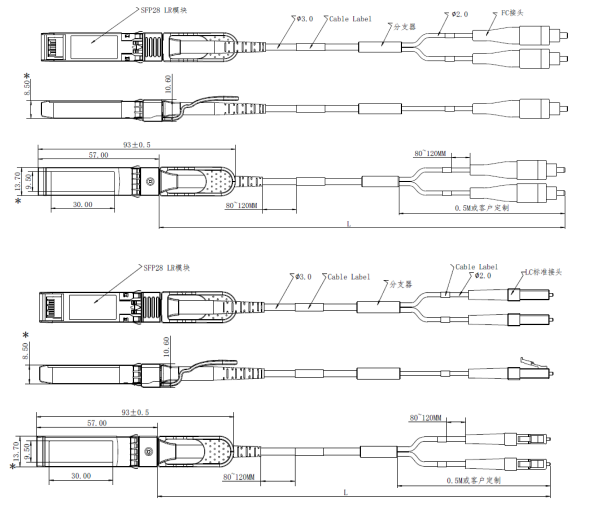

机械尺寸
订购信息
|
产品型号 |
产品描述 |
|
FTCS-25G-LR-2XX-xxx |
25Gbps, 1310nm, SFP28, SMF, 液冷光�？�,0ºC ~ +60ºC |
|
FTCS-25G-LR-2XX-xxxI |
25Gbps, 1310nm, SFP28, SMF,液冷光�？�,-40ºC ~ +85ºC |
|
XX：pigtail connector type, optional: LC/FC/MPO xxx：pigtail length in meters. |
|
本产品为25G~400G高速光�？橄盗� ，如有需要 ，请联系大宝娱乐。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
