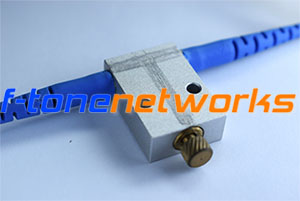

1x1 机械式光开关
Description
1x1 机械式光开关
Features
Low Insertion Loss
WideWavelengthRange
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Applications
R&D in Laboratory
System Monitoring
OADM
MAN (Metropolitan Area Network)
Specifications
|
Parameters |
Unit |
FT-1×1 |
|||
|
Wavelength Range |
nm |
850±40 / 1300±40 |
1260 ~ 1650 |
||
|
Test Wavelength |
nm |
850 / 1300 |
1310 / 1550 |
||
|
Insertion Loss 1, 2 |
dB |
Typ:0.5 |
Max:0.8 |
Type:0.4 |
Max:0.6 |
|
Return Loss 1, 2 |
dB |
MM ≥ 30 SM ≥ 50 |
|||
|
Crosstalk 1 |
dB |
MM ≥ 65 SM ≥ 70 |
|||
|
PDL |
dB |
≤0.05 |
|||
|
WDL |
dB |
≤0.25 |
|||
|
Repeatability |
dB |
≤±0.02 |
|||
|
Operating Voltage |
V |
3.0 or 5.0 |
|||
|
Durability |
Cycles |
≥ 10 Million |
|||
|
Switching Time |
ms |
≤8 |
|||
|
Optical Power |
mW |
≤500 |
|||
|
Operating Temperature |
℃ |
-20 ~ +70 |
|||
|
Storage Temperature |
℃ |
-40 ~ +85 |
|||
|
Relative Humidity |
% |
5 ~ 95 |
|||
|
Weight |
g |
14 |
|||
|
Dimension |
mm |
(L)27.0×(W)12.0×(H)8.2 ±0.2 or Customer design |
|||
|
Note: 1 Within operating temperature and SOP. 2Excluding Connectors. |
|||||
Pin Configurations
|
Type |
State |
Optical Route |
Electric Drive |
Status Sensor |
||||||
|
1×1 |
Pin 1 |
Pin 5 |
Pin 6 |
Pin 10 |
Pin 2-3 |
Pin 3-4 |
Pin 7-8 |
Pin 8-9 |
||
|
Latching |
A |
Light close |
--- |
--- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
B |
P1-P2 |
V+ |
GND |
--- |
--- |
Open |
Close |
Close |
Open |
|
|
Non- latching |
A |
Light close |
--- |
--- |
--- |
--- |
Close |
Open |
Open |
Close |
|
B |
P1-P2 |
V+ |
--- |
--- |
GND |
Open |
Close |
Close |
Open |
|
Optical Route
Dimension
Electrical Specification
|
Specifications |
Voltage |
Current |
Resistance |
|
|
5V |
latching |
4.5~5.5 V |
36~44 mA |
125 ? |
|
5V |
Non-latching |
4.5~5.5 V |
26~32 mA |
175 ? |
|
3V |
latching |
2.7~3.3 V |
54~66 mA |
50 ? |
|
3V |
Non-latching |
2.7~3.3 V |
39~47 mA |
70 ? |
