155Mbps Single Mode SFP Transceiver (60Km)
Description
155Mbps Single Mode SFP Transceiver (60Km)
FEATURES
● Hot-Pluggable SFP Footprint LC Optical Transceiver
● Small Form-Factor Pluggable (SFP) MSA compatible
● Compliant with Fibre Channel 2x SM-LC
● AC/AC Coupling according to MSA
● Distance up to 60 km
● Single +3.3 V Power Supply
● RoHS Compliant
● Class 1 Laser International Safety Standard
● IEC-60825 Compliant
● Operating Temperature
FTCS-1503-60 : 0℃~+70℃
FTCS-1503-60I : -40℃~+85℃
APPLICATIONS
● 155 Mbps ATM/ Fast Ethernet
● Fibre Channel Switch Infrastructure

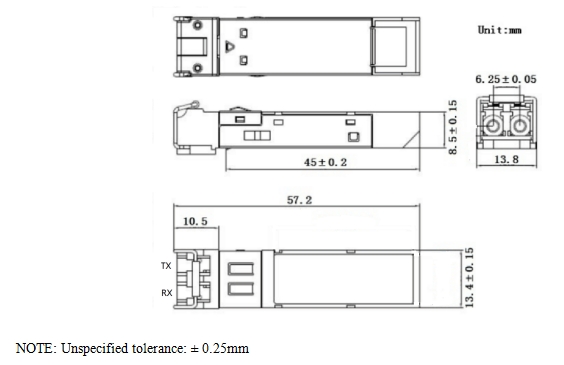

Mechanical Dimensions
Ordering Information
|
P/No. |
Package |
Bit Rate (Mb/s) |
Dist. (km) |
Wavelength (nm) |
TX Power (dBm) |
RX Sens (dBm) |
Temp. (℃) |
|
FTCS-1503-60 |
LC |
155 |
60 |
1550DFB |
-5 to 0 |
-34 |
0 ~70 |
|
FTCS-1503-60I |
LC |
155 |
60 |
1550DFB |
-5 to 0 |
-34 |
-40 ~85 |
注：本产品有全国产化型号可选
本产品为1.25G SFP系列光�？�，仅展示部分参数，如有需要，请联系大宝娱乐 。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
