155Mbps Single Mode MiniSFF BIDI FC Transceiver(40KM)

155Mbps Single Mode MiniSFF BIDI FC Transceiver(40KM)

0.0/5 rating (0 votes)

Description

155Mbps Single Mode MiniSFF BIDI FC Transceiver(40KM)

FEATURES
¡ñ Surface mount I/O pins for high speed signal integrity
¡ñ All metal body, screw mount
¡ñ Industrial Temp range, vibration tolerant design
¡ñ 1-Fiber Bi-Directional MiniSFF FC Transceiver
¡ñ Single 3.3V Power Supply
¡ñ Operating Temperature£º
      FTFC-B303-ZD / FTFC-B503-ZD : 0¡æ~+70¡æ
      FTFC-B303-ZDI / FTFC-B503-ZDI : -40¡æ~+85¡æ

APPLICATIONS
¡ñ SDH/ SONET
¡ñ Fiber Channel Links

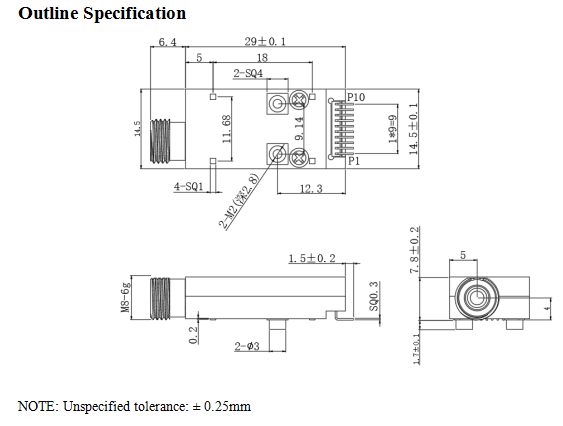

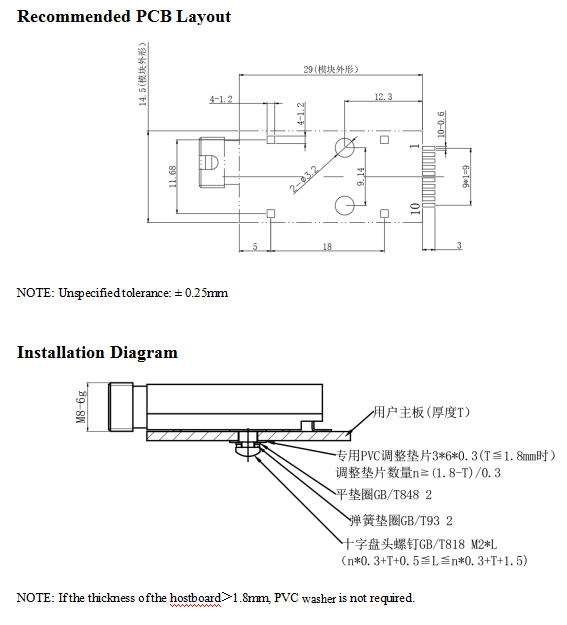

A51A51

Ordering Information

P/No.

Package



Bit Rate

(Mb/s)

Dist.

(km)

Wavelength

(nm)

Volt.

(V)

TX

Power

(dBm)

RX

Sens

(dBm)

Temp.

(¡æ)

FTFC-B303-ZD

FC

155

40

TX1310FP/RX1550

3.3

-8 to 0

-32

0 ~70

FTFC-B503-ZD

TX1550DFB/RX1310

FTFC-B303-ZDI

FC

155

40

TX1310FP/RX1550

3.3

-8 to 0

-32

-40 ~85

FTFC-B503-ZDI

TX1550DFB/RX1310













±¾²úƷΪFTFCϵÁУ¬½öչʾ²¿·Ö²ÎÊý£¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
