1550nm Fiber optic Collimator Array
Description
Key Features:
● Low Insertion Loss (IL)
● High Return Loss (RL)
● high parallelism for collimated output beam, high interval precision
Applications
● Reconfigurable Optical Add-and-Drop Module（ROADM）
● Optical Exchange Connection System （OXC）
● Wavelength Selectable Switch（WSS）
● Switch Array
Compliance
● GR1221&GR1209
Parameter (Draft Version)
|
Items |
Symbol |
Min |
Max |
Unit |
Notes |
|
Beam waist |
2? |
450 |
550 |
um |
|
|
WD range |
WD |
50 |
100 |
mm |
|
|
Insertion Loss |
IL |
NA |
0.8 |
dB |
|
|
Parallel degree |
θ |
NA |
2 |
Arcminute |
|
|
Return Loss |
RL |
45 |
NA |
dB |
|
|
Length |
X |
NA |
26.5 |
mm |
|
|
High |
Y |
NA |
3 |
mm |
|
|
Width |
Z |
NA |
14.5 |
mm |
|
|
Fiber pith |
P |
1.5 |
mm |
|
|
|
Fiber channels |
NC |
Customized |
ch |
|
|
|
Lens type |
C-Lens |
|
|||
|
wavelength |
1550±20 |
nm |
|
||
|
Work temp |
-40 to +85 |
℃ |
|
||
|
Fiber type |
Corning SMF-28e+SM Fiber |
|
|||
|
Connectors type |
FC/APC |
Customized |
|||
Note : Spec can be defined by customer

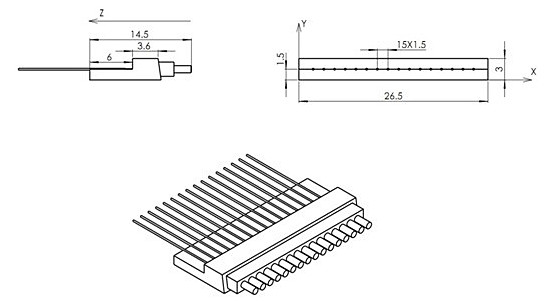

Outline Drawing
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
