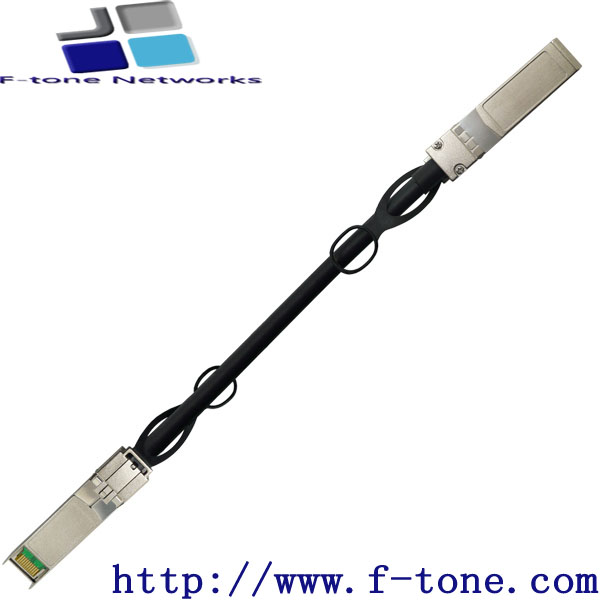

10G SFP+ 无源电缆
Description
F-tone公司专业研发制造10G SFP+ 无源电缆、10G SFP Passive Cable,切合MSA SFF-8431, 应用于10G以太网等数据中心互联场景。100%完美兼容全系列品牌效劳器,交换机,路由器,PDH/SDH传输设备,EPON,GPON,10G EPON,10G GPON,WDM PON基站等等全系列设备
SFP+ Direct Attach Cables , 1m、3m、5m、7m、10m Reach
Features
- Support for multi-gigabit data rates up to 10.5Gbps
- Data rates backward compatible to 1Gbps
- Support for 1x, 2x, 4x and 8x Fibre Channel data rates
- Hot-pluggable SFP 20PIN footprint
- I/O Connector designed for high speed differential signal applications
- Improved Pluggable FormFactor(IPF) compliant for enhanced EMI/EMC performance
- Low Power Consumption < 0.5W
- Power Supply :+3.3V
- Compatible to SFP+
- Temperature Range: 0~ 70 °C
- RoHS Compatible
Applications
- High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers
- Switched fabric I/O such as ultra high bandwidth switches and routers
- Data center cabling infrastructure
- High density connections between networking equipment
Product Description
The SFP+ cable assemblies are high performance, cost effective I/O solutions for 10Gb Ethernet and 10G fibre Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry standard requirements for performance and reliability..
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Storage Ambient Temperature |
-40 |
+85 |
°C |
||
|
Operating Case Temperature |
Tc |
0 |
+70 |
°C |
|
|
Power Supply Voltage |
VCC3 |
3.14 |
3.3 |
3.47 |
V |
|
Power Dissipation |
PD |
0.5 |
W |
Systems
|
Performance |
10.5 Gpbs line speed, full duplex Bit error rate: better than 10E-12 |
|
Media |
Hot-pluggable, industry-standard Small Form-Factor Pluggable(SFP+) copper cable, available as 1m,3m or 5m. |
|
Operating parameters |
Supply voltage: 3.3V Power consumption(per end): max 0.5W |
Supported Length
1m, 3m, or 5m typical & customer specific requirements
Pin Descriptions
|
Pin |
Logic |
Symbol |
Name/Description |
Notes |
|
1 |
VeeT
|
Transmitter Ground
|
||
|
2 |
LV-TTL-O |
TX_Fault |
N/A |
1 |
|
3 |
LV-TTL-I |
TX_DIS |
Transmitter Disable |
2 |
|
4 |
LV-TTL-I/O |
SDA |
Tow Wire Serial Data |
|
|
5 |
LV-TTL-I |
SCL |
Tow Wire Serial Clock |
|
|
6 |
MOD_DEF0 |
Module present, connect to VeeT |
||
|
7 |
LV-TTL-I |
RS0 |
N/A |
1 |
|
8 |
LV-TTL-O |
LOS |
LOS of Signal |
2 |
|
9 |
LV-TTL-I |
RS1 |
N/A |
1 |
|
10 |
VeeR |
Reciever Ground |
||
|
11 |
VeeR |
Reciever Ground |
||
|
12 |
CML-O |
RD- |
Reciever Data Inverted |
|
|
13 |
CML-O |
RD+ |
Reciever Data Non-Inverted |
|
|
14 |
VeeR |
Reciever Ground |
||
|
15 |
VccR |
Reciever Supply 3.3V |
||
|
16 |
VccT |
Transmitter Supply 3.3V |
||
|
17 |
VeeT |
Transmitter Ground |
||
|
18 |
CML-I |
TD+ |
Transmitter Data Non-Inverted |
|
|
19 |
CML_I |
TD- |
Transmitter Data Inverted |
|
|
20 |
VeeT |
Transmitter Ground |
1. Signals not supported in SFP+ Copper pulled-down to VeeT with 30K ohms resistor
2. Passive cable assemblies do not support LOS and TX_DIS
Ordering information
|
Part Number |
Product Description |
|
SFP-10GPC-X |
SFP+ Direct Attach (10GSFP+Cu), 1m, 3m, 5m, 7m 10m 0?C ~ +70?C |
|
SFP-10GPC-XI |
SFP+ Direct Attach (10GSFP+Cu), 1m, 3m, 5m, 7m 10m -40?C ~ +85?C
|
