F- tone¹«Ë¾×¨ÒµÑз¢ÖÆÔì10G SFP+ÓÐÔ´¹âÀ¡¢10G SFP+ AOC¡¢10G SFP+ Active Optical Cable
¡£×ñ ´ÓµÄ±ê×¼£º SFF-8431 SFP+ Multi©\Source Agreement 10Gb/s SFP+ ÓÐÔ´¹âÀ´«Êä¾àÀëµÖ´ï300Ã×£¨OM3ÍòÕ׶àÄ££© ¹â¿Ú²»¹ý¶£¬¾ßÓм«¸ßµÄ¿É¿¿ÐÔ µÍ±¾Ç®ÓÅÊÆ µÍ¹¦ºÄСÓÚ0.9W(ÿ¶Ë) F-tone¹«Ë¾Ìṩ300Ã×ÒÔÄڵij¤¶È¶¨ÖÆ»¯µÄÑ¡Ôñ
¡£100%ÍêÃÀ¼æÈÝȫϵÁÐÆ·ÅÆЧÀÍÆ÷,½»»»»ú,·ÓÉÆ÷,PDH/SDH´«ÊäÉ豸,EPON,GPON,10G EPON,10G GPON,WDM PON»ùÕ¾µÈµÈȫϵÁÐÉ豸

Features

¡§         Electrical interface compliant to SFF-8431

¡§         Hot Pluggable

¡§         850nm VCSEL transmitter, PIN photo-detector receiver

¡§         Up to 300m on OM3 MMF

¡§         Operating case temperature: 0 to 70¡æ

¡§         All-metal housing for superior EMI performance

¡§         RoHS compliant (lead free)

Applications

¡§         10 Gigabit Ethernet

¡§         4G and 8G Fibre Channel Applications

¡§         1x InfiniBand QDR. DDR, SDR

¡§         High-performance computing clusters

¡§         Servers, switches, storage and host card adapters

Description

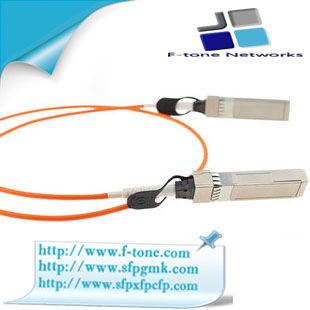

F-tone SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. F-tone SFP+ Active Optical Cables¡¯s length is up to 300 meters on OM3 MMF.

SFP+ AOC Specifications

Optical characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Note:

1. Trade-offs are available between spectral width, center wavelength and minimum OMA, as shown in table 6.

2. The optical power is launched into MMF

3. Measured with a PRBS 2³¹-1 test pattern @10.3125Gbps

4.Measured with a PRBS 2³¹-1 test pattern @10.3125Gbps,BER¡Ü10^-12.

Ordering information
