100GHz DWDM Æ÷¼þ

F-toneNetworks’s DWDM ITU Components are the result of years of telecommunication experiences in thin-film filter technology. Individual components are available on ITU channel spacing of 100 GHz.

These devices exceed the requirements of Telcordia GR-1221. They demonstrate low insertion loss and temperature insensitivity, and reliable performance in varieties system applications.

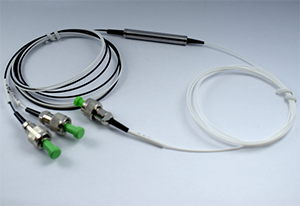

Product Pictures

                  Steel Tuble   Type                                                            Glass Type

Features

¡ñ Low insertion loss

¡ñ High channel isolation

¡ñ polarization dependent loss

¡ñ Exceptional reliability and stability

Applications

¡ñ Access networks

¡ñ Metro WDM systems

¡ñ Long haul WDM systems

¡ñ Enterprise network

Specifications

                     Note 1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.

                      2) PMD and chromatic dispersion values are guaranteed by design.

                      3) Specifications are subject to change without notice

Dimensions drawing£¨mm£©

Spectral plot (dB)
