Description
The F-tone Networks 100GBASE-LR4 CFP module£¨only receiver£© is the CFP optical transceiver which is a hot pluggable form factor designed for high speed optical networking application. The module is designed for 100 Gigabit Ethernet application and provides 100GBASE-LR4 compliant optical interface, CAUI electrical interface and MDIO module management interface. The module convert 4-laneLAN-WDM25.78Gb/s optical input signal to 10-lane10.3Gb/s electrical data streams. This 10-lane 10.3Gb/s electrical signal is fully compliant with802.3ba CAUI specification and allows FR4 host PCB trace up to 25cm. The high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.

Features
¡ñ Operating optical data rate up to 112Gbps
¡ñ CFP MSA compliant
¡ñ Compliant to 100GbE IEEE 802.3ba specification for 100GBASE-LR4 links
¡ñ OTU4 compatible
¡ñ 1310 nm window PIN ROSA(without TOSA)
¡ñ 10 parallel electrical serial interface and AC coupling of CML signals
¡ñ Hot pluggable electrical interface
¡ñ Low power dissipation<6W
¡ñ Single 3.3V power supply
¡ñ RoHS 6 compliant(lead free)
¡ñ Case operating temperature
     Commercial: 0 ~ +70¡æ
     Industrial: -40 ~ +85¡æ

Applications
¡ñ 100GbE IEEE 802.3ba 100GBASE-LR4
¡ñ OTN-OTU4
¡ñ Switch to switch interface or Switch to router interface

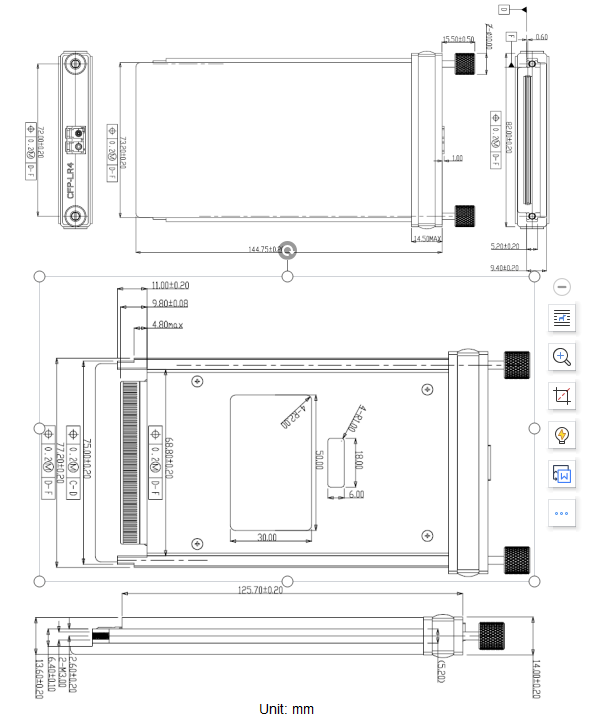

Mechanical Dimensions

Ordering information

±¾²úƷΪ25G~400G¸ßËÙ¹âÄ£¿éϵÁУ¬ÈçÓÐÐèÒª£¬ÇëÁªÏµ´ó±¦ÓéÀÖ¡£

×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
