标准光�？�
10.3125Gbps,850nm,12路收发一体光�？�
Description
10.3125Gbps,850nm,12路收发一体光�？�
产品特性及应用
特性
● 12路发射和12路接收并行光纤通道
● 单通道速率达10.3125Gbps
● 850nm VCSEL/PD阵列技术
● 高速数据差分信号l/0 □兼容 CML/LVDS/PECL电平
● 3.3V单电源供电
● 宽事情温度：-40℃~+85℃
● 光学接口接纳MPO24芯并带光纤连接
● 具备I2c通信接口
● 10x10 MEG-Array电连接器
● 紧凑的结构设计，高密度高容量
应用
● 背板互联
● 并行光互连
● 雷达与处理机互联
● 效劳器与存储器阵列的互连
● 电接口形式：板上可插拔

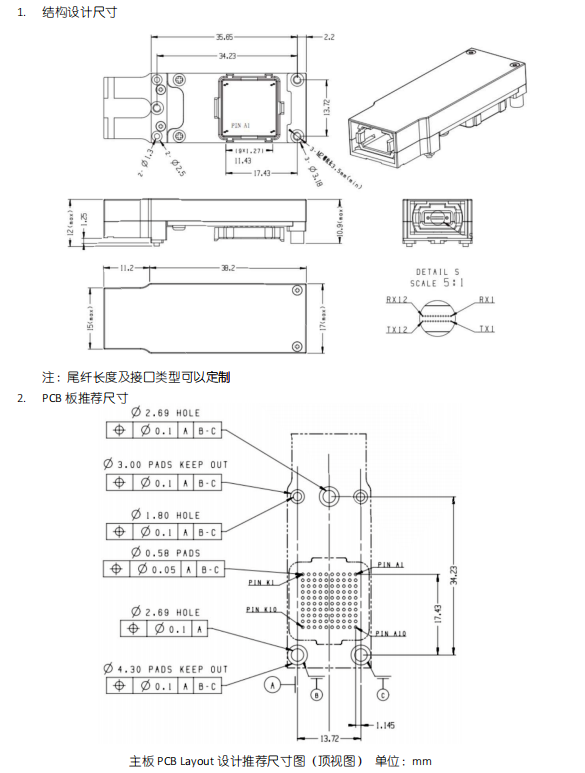

设计参数
订购信息
注：本产品有全国产化型号可选
本产品为FT-89系列SNAP12 并行光�？�，仅展示部分参数，如有需要，请联系大宝娱乐 。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
