1¡Á9 BIDI DC-2Mbps 1310nm 20km ¹âÄ£¿é
Description
1×9 BIDI DC-2Mbps 1310nm 20km ¹âÄ£¿é
Product Description
F-tone Networks’s FTTR-BxxL1-xx BIDI series of transceiver modules are the perfect solution for ultra-low speed communication networks.These transceiver modules support data rates up to 2Mbps.The module is fully compliant with the Multi-sourced 1×9 protocol.These transceiver modules provides the system designer with products to RS232/RS485/RS422 fiber transmission.
Product Features
¡ñ FP Laser Diode Transmitter
¡ñ Up to 40 Km on 9/125μm SMF
¡ñ 3.3V or 5Vpower supply
¡ñ SC/ST/FC duplex optical interface
¡ñ (LV)TTL Input/ Output and LVTTL signal detect Class 1 Laser International Safety Standard IEC 825 Compliant
¡ñ Operating case temperature range (Standard £º0 to+70¡æ) or (Industrial£º -40°C to +85°C)
Application
¡ñ RS232/RS485/RS422 receptacle fiber transmission
¡ñ Other optic link

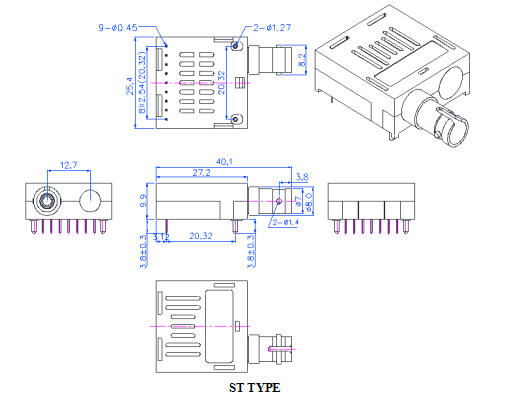

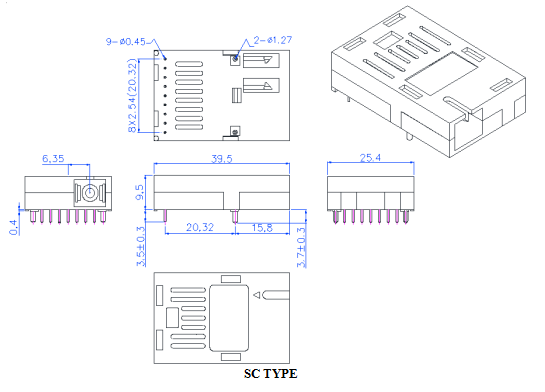

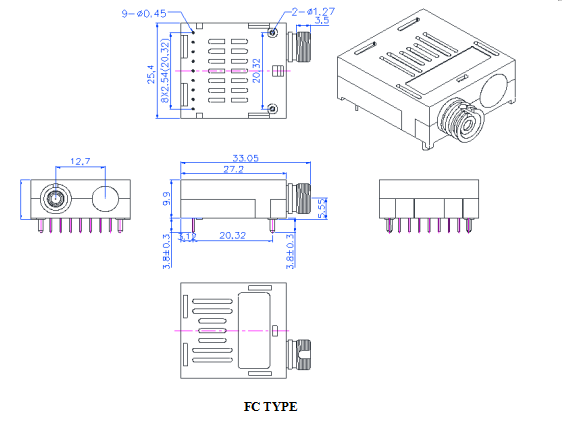

Module Outline Drawing (Units in mm)
Ordering information
|
²úÆ·ÐͺŠ|
»ù±¾²ÎÊý |
|
FTTR-B13L1-20 |
1x9¹âÄ£¿é-T1310/R1550-2M-20KM |
|
FTTR-B15L1-20 |
1x9¹âÄ£¿é-T1550/R1310-2M-20KM |
|
FTTR-B13L1-40 |
1x9¹âÄ£¿é-T1310/R1550-2M-40KM |
|
FTTR-B15L1-40 |
1x9¹âÄ£¿é-T1550/R1310-2M-40KM |
×¢£º±¾²úÆ·ÓÐÈ«¹ú²ú»¯ÐͺſÉÑ¡ £¬½öչʾ²¿·Ö²ÎÊý £¬ÈçÓÐÐèÒª £¬ÇëÄúÁªÏµ´ó±¦ÓéÀÖ¡£
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
