1.25Gbps SFP Optical Transceiver, 10km Reach
Description
1.25Gbps SFP Optical Transceiver, 10km Reach
Description
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features
● Dual data-rate of 1.25Gbps/1.063Gbps operation
● 1310nm FP laser and PIN photodetector for 10km transmission
● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
● Digital Diagnostic Monitoring:Internal Calibration or External Calibration
● Compatible with SONET OC-24-LR-1
● Compatible with RoHS
● +3.3V single power supply
● Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
Applications
● Gigabit Ethernet
● Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems

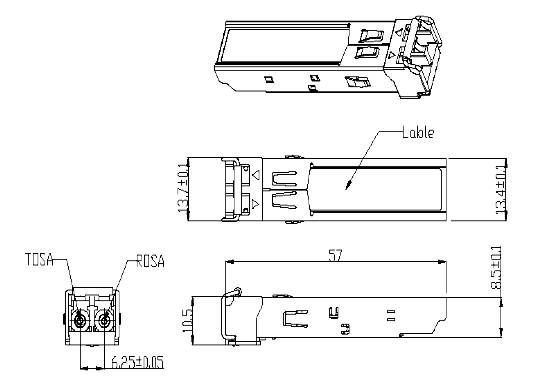

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTCS-1312-10 |
1310nm, 1.25Gbps, 10km, 0ºC ~ +70ºC |
|
FTCS-1312-10I |
1310nm, 1.25Gbps, 10km, -40ºC ~ +85ºC |
|
FTCS-1312-10D |
1310nm, 1.25Gbps, 10km, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring |
|
FTCS-1312-10DI |
1310nm, 1.25Gbps, 10km, -40ºC ~ +85ºC, With Digital Diagnostic Monitoring |
注：本产品有全国产化型号可选
本产品为1.25G SFP系列光�？� ，仅展示部分参数 ，如有需要 ，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
