0~50Mbps TTL SFP Transceiver Module
Description
0~50Mbps TTL SFP Transceiver Module
Product Description
F-tone Networks’s FTCS-13LB-20I series of transceiver modules are the perfect solution for low -speed communication networks.These transceiver modules support data rates up to 50Mbps. The module is fully compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA).
These transceiver modules provides the system designer with The transceiver module provides the system designer with products to RS232/RS485/RS422 receptacle fiber transmission and Other multimode fiber networks.
Product Features
● 1310FP Laser Diode Transmitter
● Up to 20 Km on 9/125μm SMF
● 3.3V power supply
● LC duplex optical interface
● LVTTL Inputs/ Outputs and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Extended： -40°C to +85°C)
Application
● RS232/RS485/RS422 receptacle fiber transmission
● Other optic link

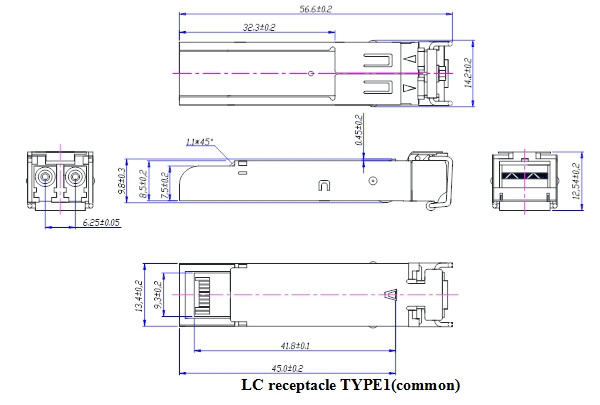

Module Outline Drawing（Units in mm)
Order Information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
|
FTCS-13LB-20I |
SM |
1310 |
20 |
注：本产品有全国产化型号可选
本产品为SFP系列光�？�，仅展示部分参数，如有需要，请联系大宝娱乐 。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
