10Gb/s SFP+ 850nm Optical Transceiver Module

10Gb/s SFP+ 850nm Optical Transceiver Module

0.0/5 rating (0 votes)

Description

10Gb/s SFP+ 850nm Optical Transceiver Module

Description
FTCS-851X-DZM-210726 SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 300m over Multi-mode fiber. The module consists of 850nm VCSEL Laser, 1310nm PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
FTCS-851X-DZM-210726 transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.
The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8 bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.

Features
● Up to 11.3Gb/s data links
● 850nm VCSEL laser and 1310nm PIN receiver
● Up to 300m on 50/125µm MMF
● Hot-pluggable SFP+ footprint
● Duplex LC/UPC type pluggable optical interface
● RoHS-10 compliant and lead-free
● Support Digital Diagnostic Monitoring interface
● Compliant with SFF+MSA and SFF-8472
● Single +3.3V power supply
● Metal enclosure, for lower EMI
● Meet ESD requirements, resist 8KV direct contact voltage
● Case operating temperature
      Industrial: -55 ~ +70℃

Applications
● 10GBASE-SR/SW & 10G Ethernet
● SDH STM64
● Other Optical Links

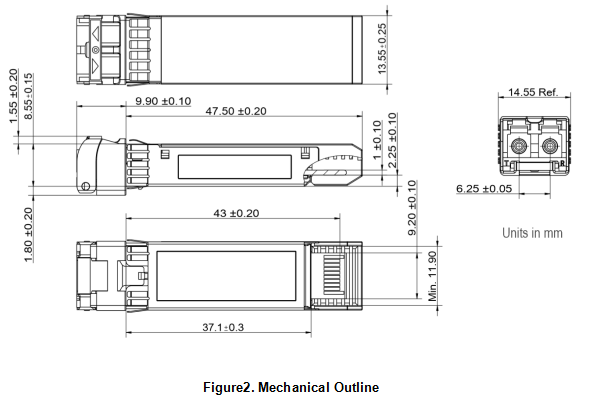

Mechanical Dimensions

8

Part Number Ordering Information

Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(m)

Temperature (℃) (Operating Case)

FTCS-851X-DZM-210726

10.3125

850

300m MMF

-55~70 Industrial
备注：光� ？榭翘逦露任�85度，有散热情况下，可支持事情情况温度为70度













注：本产品有全国产化型号可选
本产品为SFP+系列光� ？�，如有需要，请联系大宝娱乐。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
