层绞式铝带阻燃光缆

层绞式铝带阻燃光缆

0.0/5 rating (0 votes)

Description

产品型号 model：FT-71-GYTZA-4B1.3 产品描述 The product description
光缆的结构是将着色光纤套入高模量质料 PBT 制成的松套管中，松套管内填充阻水化合物，缆芯的中心是一根高强度金属增强芯，套管和填充绳围绕中心增强芯绞合成紧凑和圆形的缆芯，缆芯内的漏洞充以阻水填充物，缆芯外纵包双面覆塑膜铝带，铝带外挤制低烟无卤质料完成外护套成缆。
Cable structure is colored fiber set into the PBT, pine casing made of high modulus materials,loose tube filling block water tube compound, the center of the core is a high strength,strengthen the core metal casing and populate the rope around the center to strengthen thecore of the twisted into a compact and circular cable core, core within the gap to block waterfilling filler, outside the cable core is applied to longitudinally wrap double-sided plastic filmaluminum tape, aluminum extrusion outside the band low smoke zero halogen material tocomplete the cable outer sheath.

产品特点 Product features
1、层绞式结构设计包管光缆具有很好的机械和温度特性；
Excellent mechanical and temperature performance.
2、松套管内填充缓冲油膏，既�；す庀擞制鸬椒浪饔�；
Special tube filling compound ensure a critical protection of fiber and resist the water.
3、高强度钢丝担负轴向负载；
Single steel wire as the central strength member to withstand axial loads.
4、缆芯阻水油膏全填充可有效防水；
100% core filling water prevent cable jelly to ensure the cable watertight.
5、铝带纵包，良好的挡潮性能；
AL tape longitudinal cover cable core as moisture barrier.
6、外护套接纳 LSZH 质料，满足使用场合防火宁静及环保要求。
The outer sheath adopts LSZH material to meet the requirements of fire safety and environmental protection

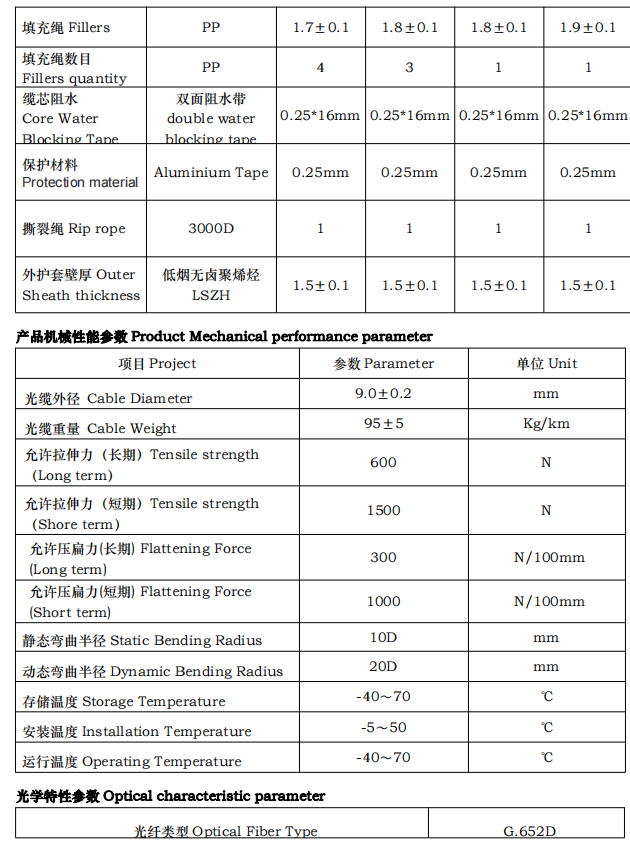

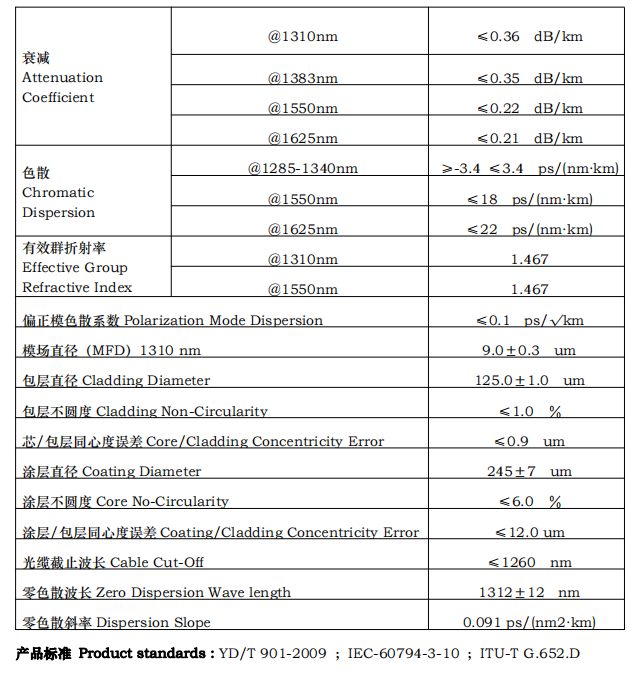

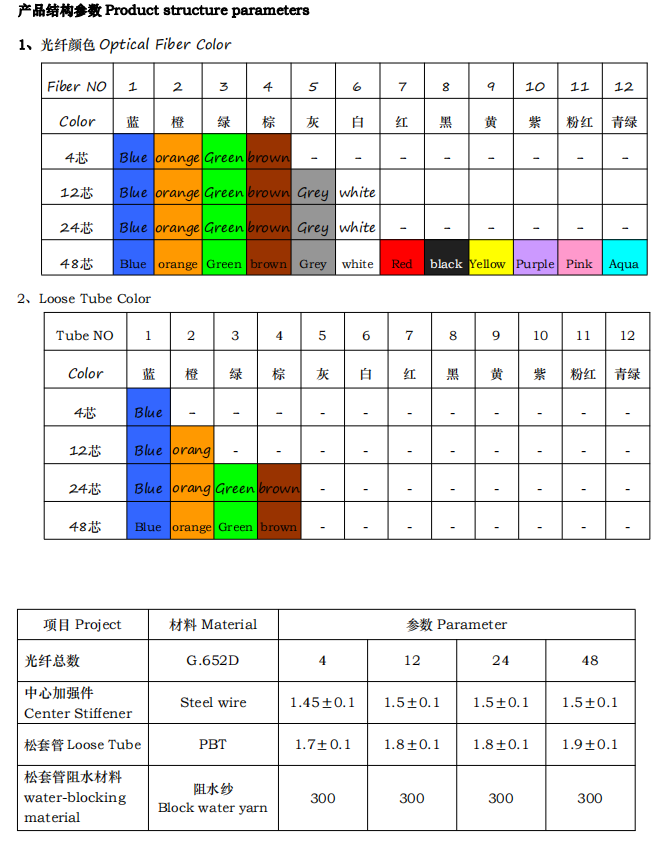

A 83A 83A 83







注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
