1.25Gbps 2X5 SFF MM Transceiver Module
Description
1.25Gbps 2X5 SFF MM Transceiver Module
Product Description
FTAF-XXX12-02XX series of transceiver modules are the perfect solution for high-speed communication networks.FTAF-XXX12-02XX series modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications.
FTAF-XXX12-02XX Small Form Factor (SFF) transceivers comply with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC5.
FTAF-XXX12-02XX SFF transceivers support data rates up to 1.25bps.FTAF-XXX12-02XX SFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.
Product Features
● 1310nm FP or 850nm VCSEL Laser Transmitter
● Up to 0.55Km on 62.5/125μm MMF
● Single 3.3V power supply
● Standard 2X5 pin footprint (MSA Compliant)
● Two temperature ranges:
0°C to +70°C
-40°C to +85°C for industry level
● Duplex LC connector
● LVPECL Signal Input / CML Signal Output
● LVTTL Signal Detect
● Low power dissipation
● Excellent EMI and ESD protection
● Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)
Application
● ATM
● Fiber channel
● SONET/SDH
● Fast Ethernet
● Other optic link

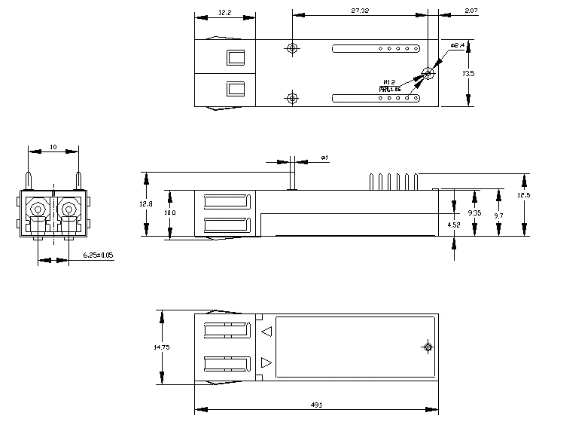

Mechanical Specifications
Ordering information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
Temperature ranges |
Signal TX /Signal RX/Signal Detect |
|
FTAF-M1312-02 |
MM |
1310(FP) |
0.55 |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-8512-02 |
MM |
850(VCSEL) |
0.5 |
0°C to +70°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-M1312-02I |
MM |
1310(FP) |
0.55 |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
|
FTAF-8512-02I |
MM |
850(VCSEL) |
0.5 |
-40°C to +85°C |
TX:LVPECL/RX:LVPECL/SD:LVTTL |
注：本产品有全国产化型号可选
本产品为FTAF系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
