0~20M 2X5 SFF BD LVTTL Single Mode Transceiver
Description
0~20M 2X5 SFF BD LVTTL Single Mode Transceiver
FEATURES
● Single 3.3 Volt DC supply
● 2x5 SFF Package Outline
● Bi-Directional Optical Transceiver
● LC connector
● LVTTL input and output
● Class 1 laser product complies with EN 60825-1
● RoHs Compliance
● Operating case temperature:
FTAF-B13L2-10 / FTAF-B15L2-10 : 0℃~+70℃
FTAF-B13L2-10I / FTAF-B15L2-10I : -40℃~+85℃
APPLICATIONS
● Low Rate Bus transmission

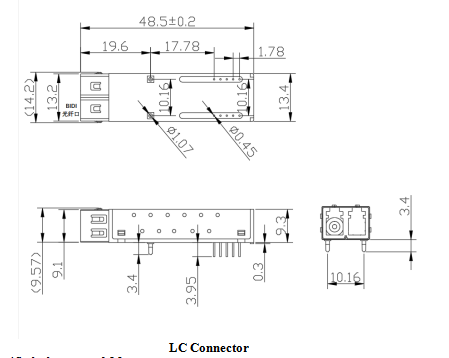

Mechanical Specifications
Ordering information
|
P/No. |
Package
|
Bit Rate (Mb/s) |
Dist. (km) |
Wavelength (nm) |
Volt. (V) |
TX Power (dBm) |
RX Sens (dBm) |
Temp. (℃) |
|
FTAF-B13L2-10 |
LC |
0~20 |
10 |
TX1310FP/RX1550 |
3.3 |
-12 to -5 |
-20 |
0 ~ 70 |
|
FTAF-B15L2-10 |
LC |
0~20 |
10 |
TX1550FP/RX1310 |
3.3 |
-12 to -5 |
-20 |
0 ~ 70 |
|
FTAF-B13L2-10I |
LC |
0~20 |
10 |
TX1310FP/RX1550 |
3.3 |
-12 to -5 |
-20 |
-40 ~ 85 |
|
FTAF-B15L2-10I |
LC |
0~20 |
10 |
TX1550FP/RX1310 |
3.3 |
-12 to -5 |
-20 |
-40 ~ 85 |
注：本产品有全国产化型号可选
本产品为FTAF系列，仅展示部分参数，如有需要，请联系大宝娱乐。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
